GARR GARRT-02057 Name Power 1/8 in Dia Cutter 1/4 in Length of Cut 170MA

Product Description

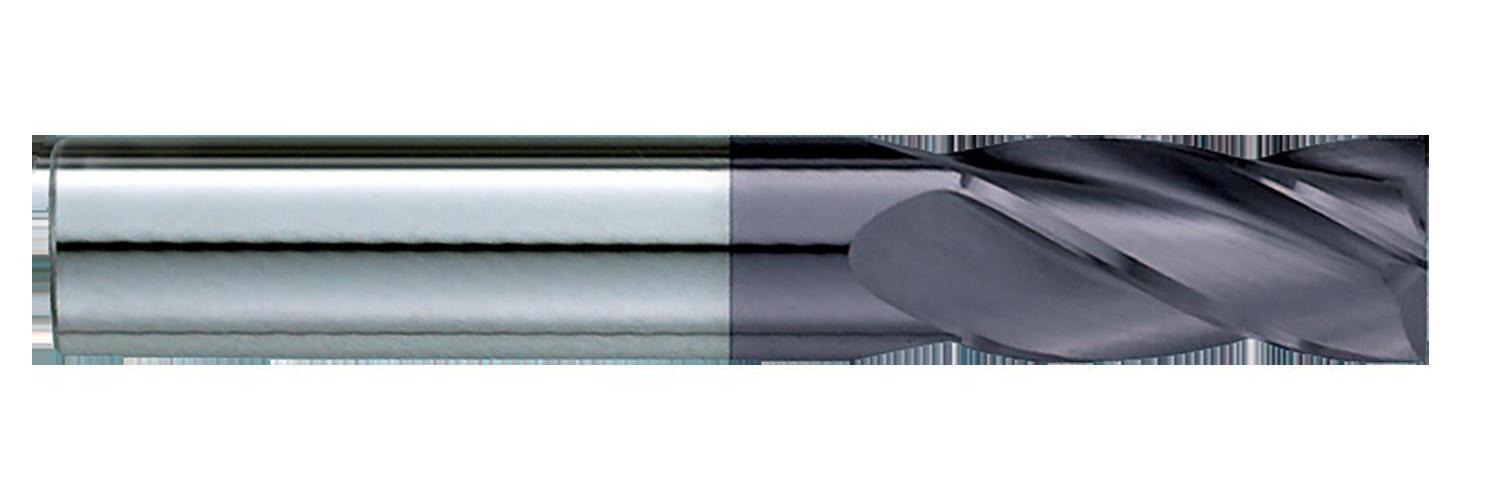

The GARR End Mill, MPN GARRT-02057, is a center cutting single end square end stub length tool designed for effective milling operations. It features a one-eighth inch diameter cutter and an overall length of one and a half inches. This end mill is ideal for dry or semi-dry machining applications.

• Manufactured from solid submicron carbide
• TiALN coating for effective heat resistance
• Four flutes for efficient chip removal

Product Highlights

This tool is suited for precision milling tasks requiring rigidity and speed. Its spiral flute design ensures optimal cutting efficiency.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-02057

Technical Specifications

• Cutter Diameter: 1/8 in
• Length of Cut: 1/4 in
• Overall Length: 1-1/2 in
• Shank Diameter: 1/8 in
• Shank Length: 1-1/4 in
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Flute Type: Spiral
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
• Series: 170MA
