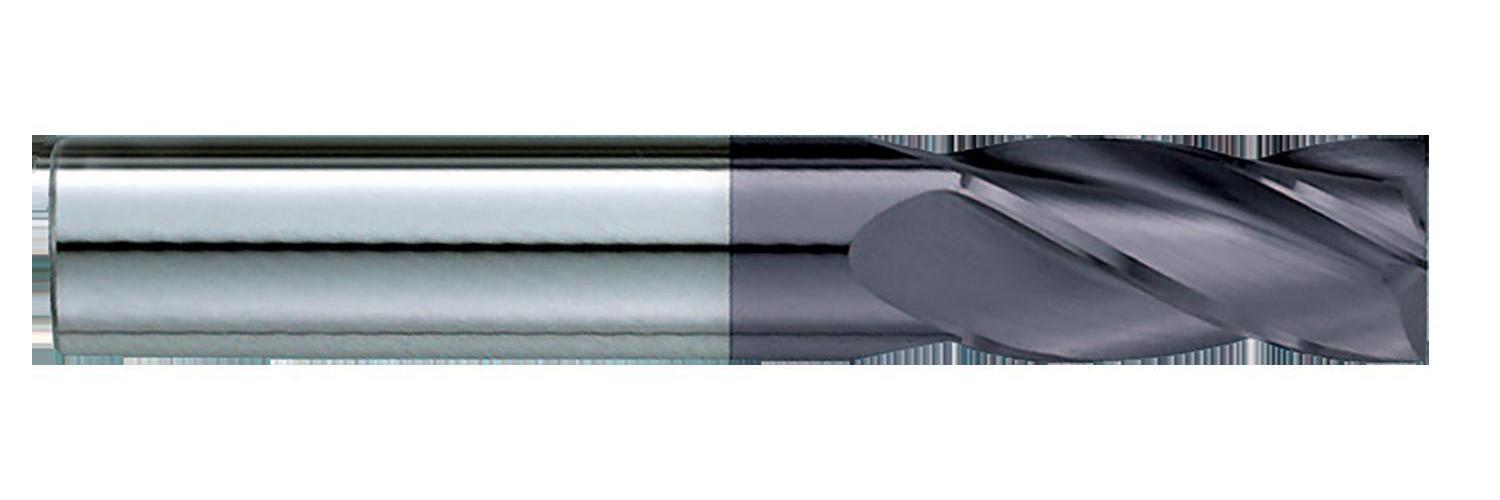

GARR GARRT-02037 170MA Center Cutting Single End Square End Stub Length

Product Description

The GARR End Mill GARRT-02037 is a center cutting single end square end stub length tool designed for precision milling tasks. It features a cutter diameter of one-sixteenth inches and an overall length of one and one-half inches. This end mill has a length of cut measuring one-eighth inches and comes with four spiral flutes. It is made from solid submicron carbide and has a TiALN coating for enhanced durability. Ideal for dry or semi-dry machining applications, this tool ensures efficient chip removal and high cutting performance.

• Center cutting design for versatility in machining
• Made of solid submicron carbide for durability
• TiALN coating for extended tool life

Product Highlights

This end mill is built for rigorous milling needs, providing reliable performance in various conditions.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-02037

Technical Specifications

• Cutter Diameter: 1/16 in
• Length of Cut: 1/8 in
• Overall Length: 1-1/2 in
• Shank Diameter: 1/8 in
• Number of Flutes: 4
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Material: Solid submicron carbide
• Finish: TiALN Coated
• Shank Length: 1-3/8 in
• Series: 170MA
• Shank Type: Plain/Round
