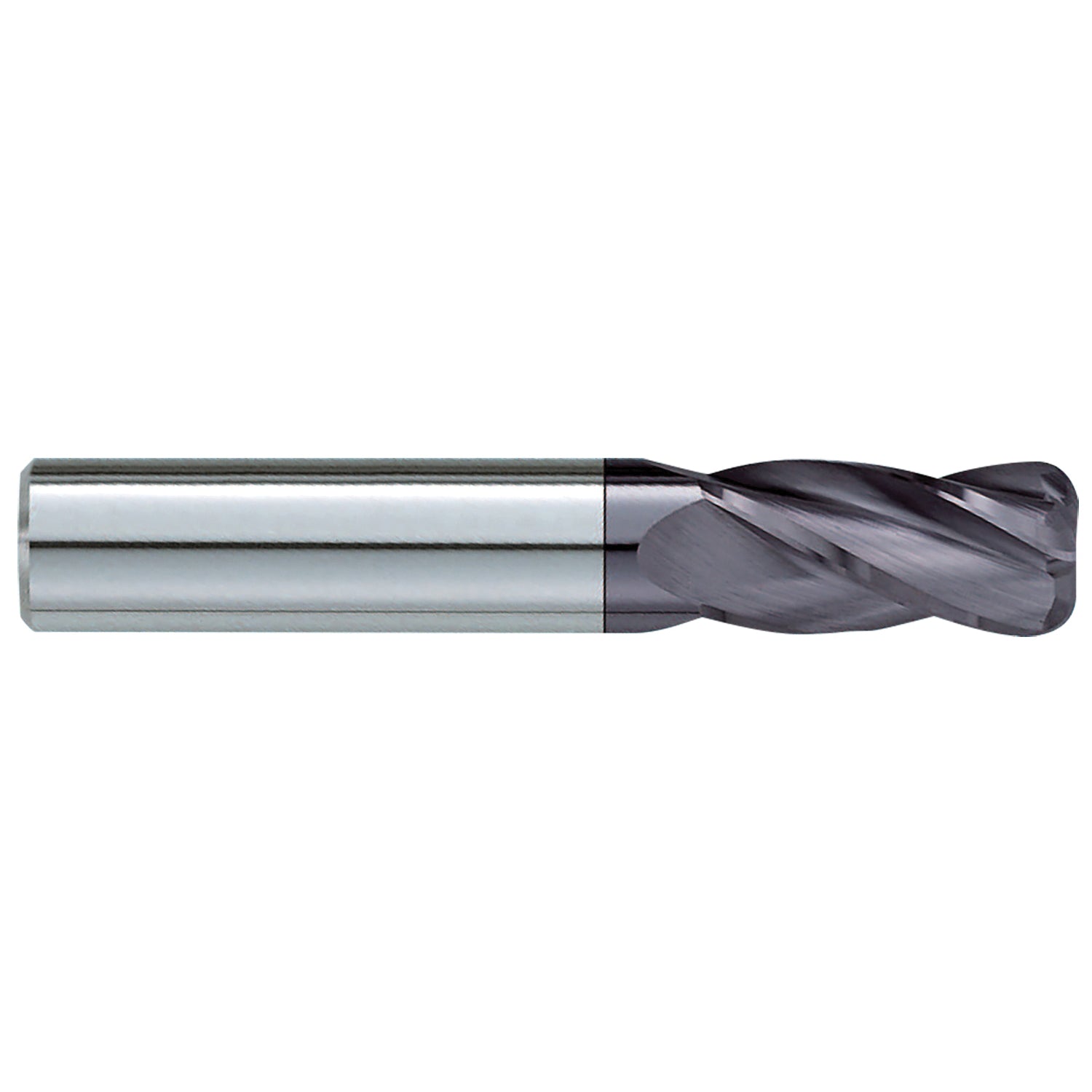

Garr 80257 230RA Center Cutting Single End Standard Length End Mill, 3/8 in Dia Cutter, 0.03 in Corner Radius, 7/8 in Length of Cut, 4 Flutes

Product Description

The Garr Tools 80257 is a center cutting single end standard length end mill designed for precision milling tasks. This tool features a three-eighth inch diameter cutter and a corner radius of zero point zero three inches. It is effective for dry or semi-dry machining operations.

• Material: Submicron grain solid carbide.
• Coating: TiAlN for increased durability.
• Number of flutes: Four.

Product Highlights

Suitable for creating strong edges and part radii, this end mill supports high-speed cutting and offers versatility in machining applications.

Product Information

Standard Information

• Part Number: 230R-80250TL
• Brand: Garr Tools

Technical Specifications

• Diameter: 0.3750 inches (3/8)
• Shank Diameter: 0.3750 inches (3/8)
• Flute Length: 0.8750 inches (7/8)
• Overall Length: 2.5000 inches (2 1/2)
• Corner Radius: 0.030 inches
• Helix Angle: 30 degrees
• Cutting Direction: Right Hand
• Finish: TiAlN Coated
