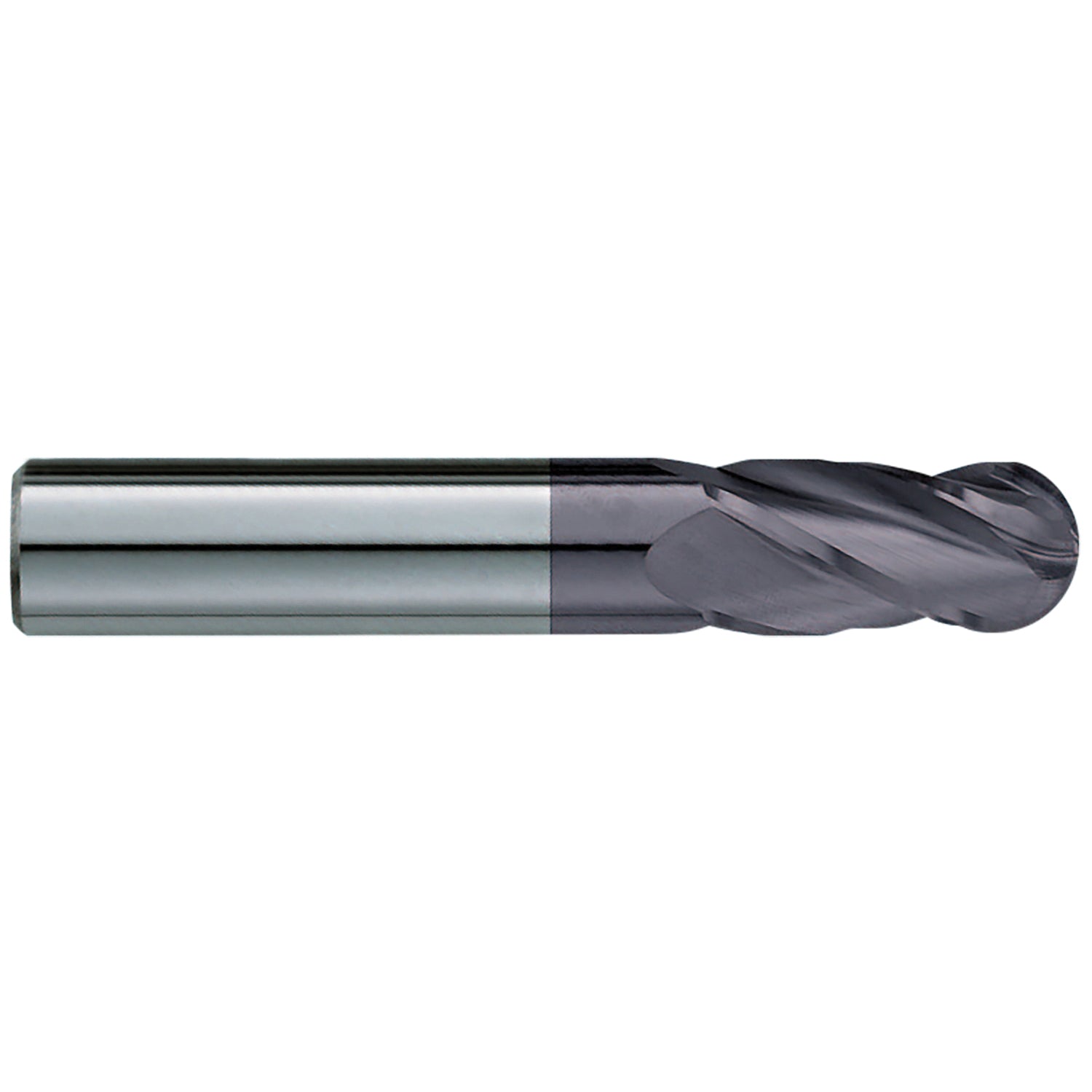

Garr 18117 330MA Ball End Center Cutting Single End Standard Length Ball End Mill, 3/16 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes

Product Description

The Garr Tools 18117 is a ball end mill designed for precision cutting. It features a diameter of three sixteenths of an inch and an overall length of two inches. The tool has a length of cut of five eighths of an inch, making it suitable for a range of milling applications. This mill is constructed from solid submicron carbide and coated with TiAlN for durability and effectiveness.

• Ball end center cutting design
• Four flutes for improved chip removal
• Right hand cutting direction

Product Highlights

This ball end mill offers a helical angle of thirty degrees and is ideal for dry or semi-dry machining tasks. Its robust construction allows for efficient machining of a variety of materials.

Product Information

Standard Information

• Brand: Garr Tools
• Material: Solid Submicron Carbide

Technical Specifications

• Diameter: 3/16 in
• Shank Diameter: 3/16 in
• Flute Length: 5/8 in
• Overall Length: 2 in
• Number of Flutes: 4
• Helix Angle: 30 degrees
• Cutting Direction: Right Hand
• Finish: TiAlN Coated
