Garr 18097 GARR 5/32x3/16x9/16x2 4F TIALN CARB BALL MILL 330MA

Product Description

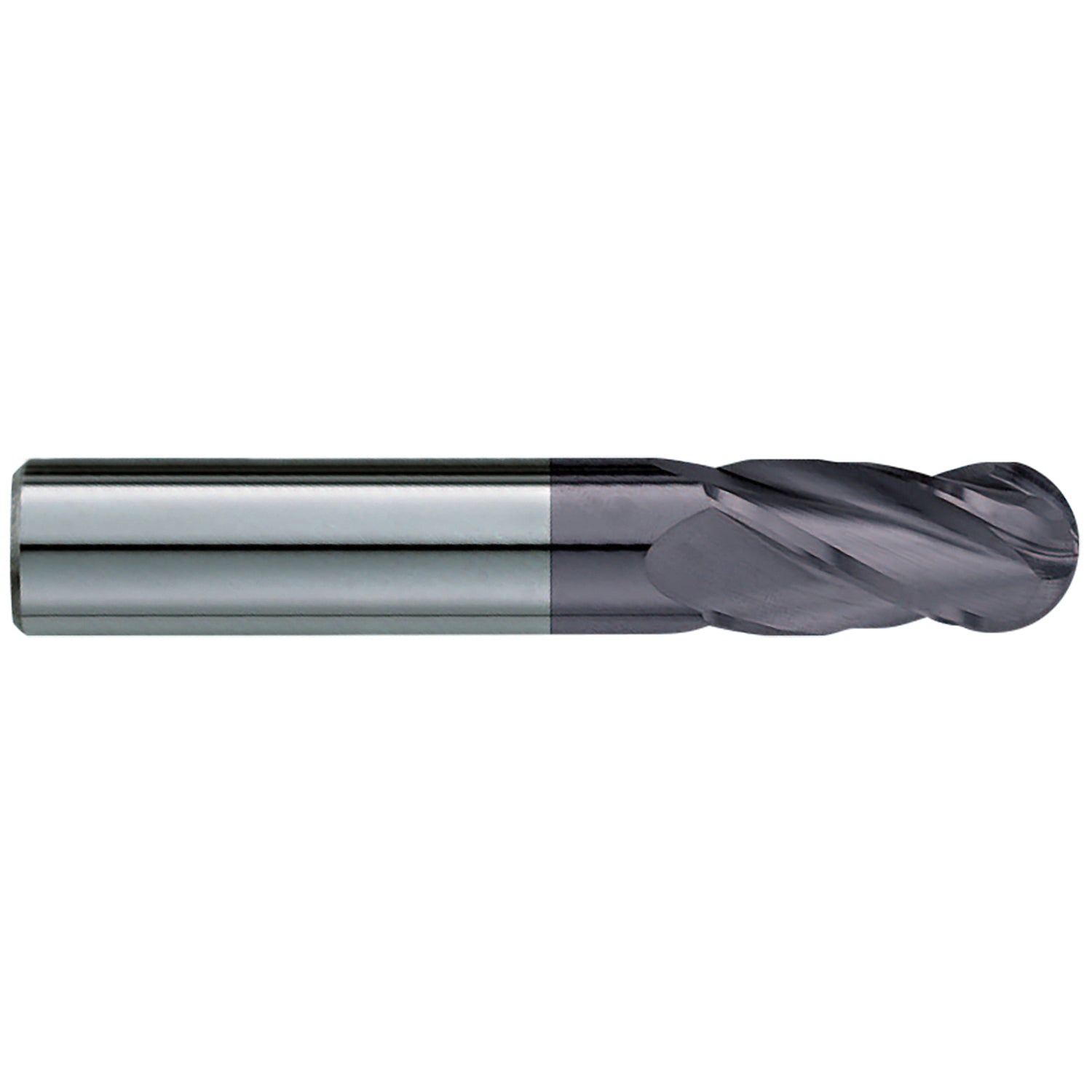

The Garr Tools 18097 is a 5/32 inch diameter ball end mill designed for cutting and shaping materials with precision. This tool features a solid submicron carbide construction with a TiAlN coating for enhanced durability. It measures two inches in overall length, making it suitable for various milling applications.

• Diameter: 5/32 inch
• Four flutes for efficient chip removal
• Right-hand cutting direction with a 30-degree helix angle

Product Highlights

This ball end mill is ideal for dry or semi-dry machining, delivering superior performance and longevity in tool life.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 18097

Technical Specifications

• Diameter: 5/32 inch
• Shank Diameter: 3/16 inch
• Overall Length: 2 inches
• Flute Length: 9/16 inch
• Number of Flutes: 4
• Shank Length: 1-7/16 inch
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Finish: TiAlN Coated
• Cutter Type: Ball End Center Cutting Single End Standard Length
