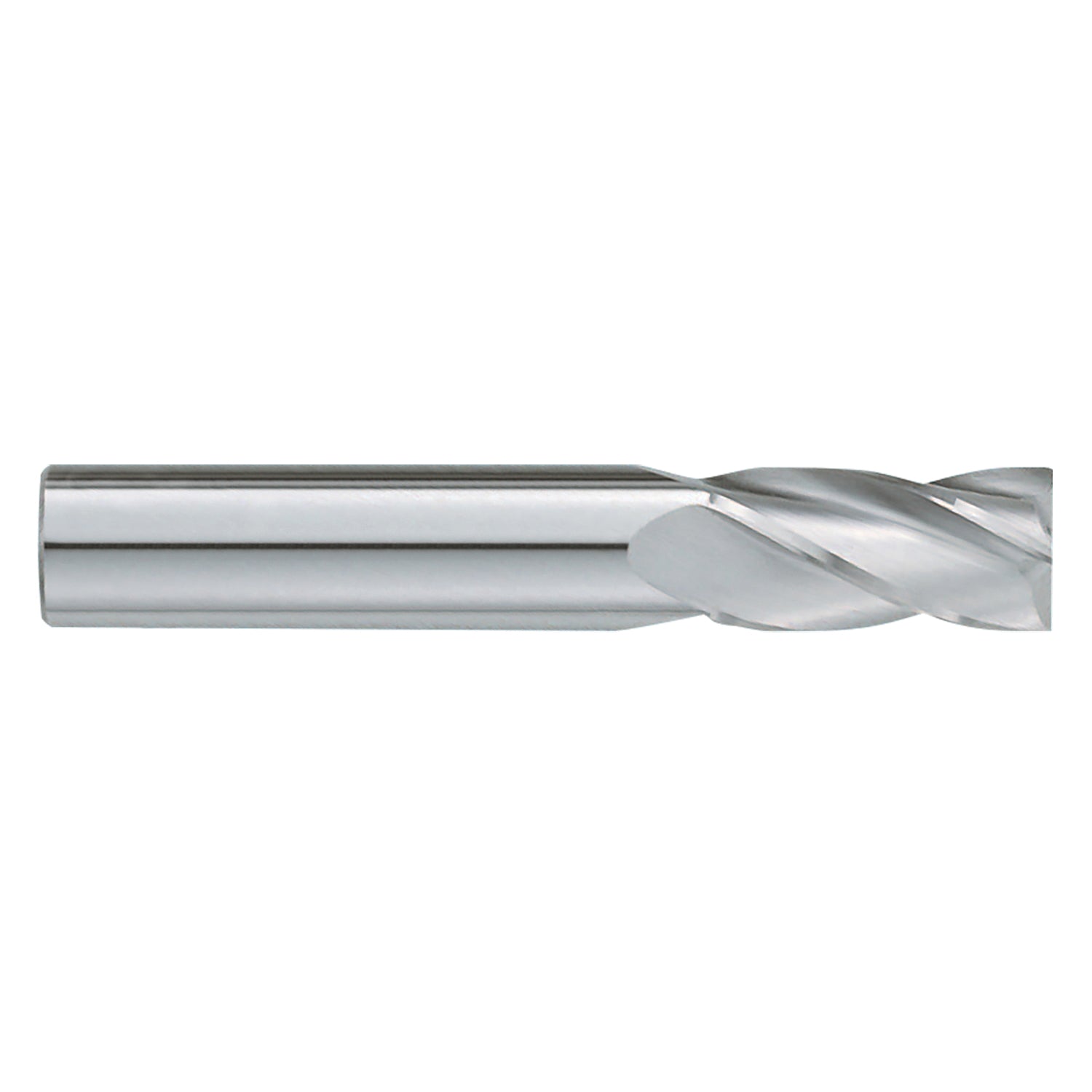

Garr 13010 230M Center Cutting Single End Square End Standard Length End Mill, 1/32 in Dia Cutter, 3/32 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Product Description

The Garr 13010 is a center cutting single end square end mill designed for precision milling tasks. This end mill features a cutter diameter of one thirty-second of an inch and is constructed from solid submicron carbide for durability. The overall length is one and a half inches, making it suitable for various machining applications.

• Diameter: 0.0312 inches
• Shank diameter: 0.1250 inches (1/8 inch)
• Flute count: 4

Product Highlights

This end mill offers a spiral flute design, a right-hand cutting direction, and an uncoated finish. It is ideal for general-purpose milling tasks, making it a versatile tool in any machinist's toolbox.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 13010

Technical Specifications

• Type: Center Cutting Single End Square End Standard Length
• Shank Type: Plain/Round
• Shank Length: 1-13/32 inches
• Series: 230M
• Material: Solid Submicron Carbide
• Helix Angle: 30 degrees
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Length of Cut: 3/32 inches
• Overall Length: 1-1/2 inches
• Finish: Uncoated
