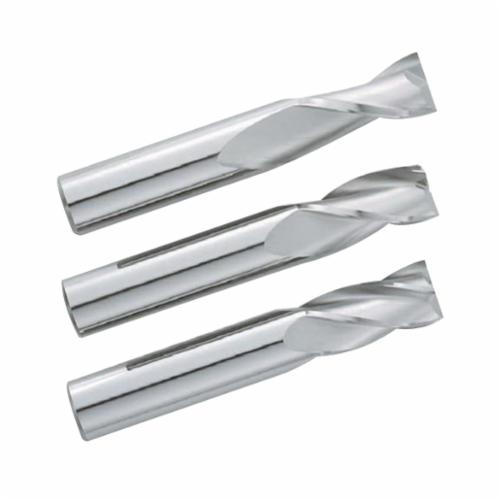

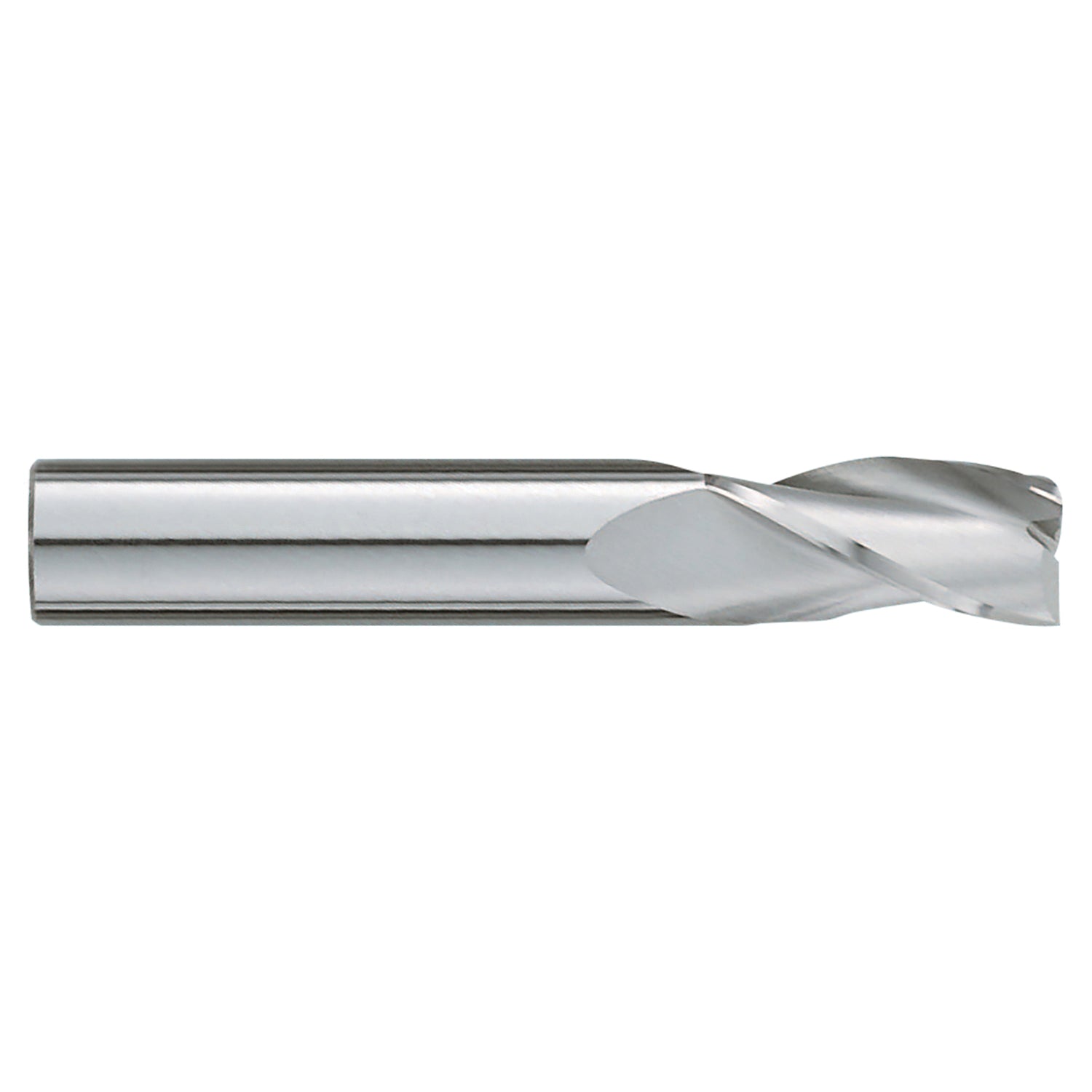

Garr 12110 223M Center Cutting Single End Square End Standard Length End Mill, 3/16 in Diameter Cutter, 5/8 in Length of Cut, 3 Flutes

Product Description

The Garr Tools 12110 is a center cutting single end square end standard length end mill. It features a three-sixteenth inch diameter cutter and a length of cut of five-eighths inches. The overall length of the mill is two inches, making it suitable for various milling tasks.

• Material: Solid Submicron Carbide
• Flute Type: Spiral with three flutes
• Cutting Direction: Right Hand

Product Highlights

This end mill is designed for general purpose milling applications. It is versatile and effective for cutting operations.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 12110

Technical Specifications

• Shank Type: Plain/Round
• Shank Length: 1-3/8 inches
• Series: 223M
• Material: Solid Submicron Carbide
• Helix Angle: 30 degrees
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Cutter Diameter: 3/16 inches
• Length of Cut: 5/8 inches
• Number of Flutes: 3
• Shank Diameter: 3/16 inches
• Overall Length: 2 inches
• Finish: Uncoated
