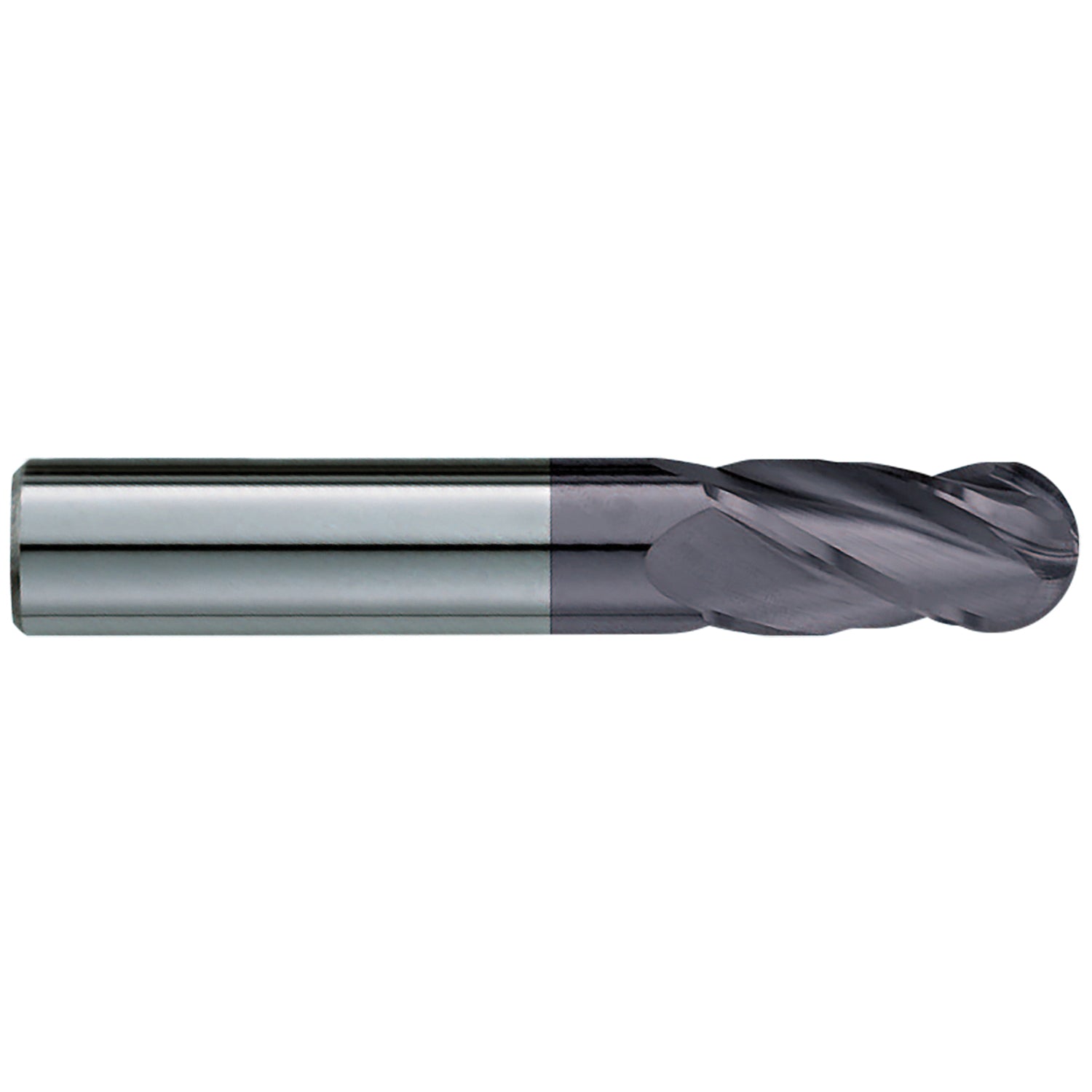

Garr 04037 190MA Ball End Center Cutting Single End Stub Length End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL

Product Description

The Garr Tools 04037 is a Ball End Center Cutting Single End Stub Length End Mill. This end mill is designed for precision milling tasks. It features a diameter of one-sixteenth of an inch and a length of cut of one-eighth of an inch. The overall length of the end mill is one and a half inches.

• Made from solid submicron carbide for enhanced durability
• Coated with TiAlN for extended tool life
• Four flutes provide efficient chip removal

Product Highlights

This end mill is ideal for various milling applications, including dry and semi-dry machining. It is designed for right-hand cutting and features a 30-degree helix angle.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 04037

Technical Specifications

• Type: Ball End Center Cutting Single End Stub Length
• Cutter Diameter: 1/16 in
• Length of Cut: 1/8 in
• Overall Length: 1-1/2 in
• Shank Diameter: 1/8 in
• Number of Flutes: 4
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Finish: TiAlN Coated
