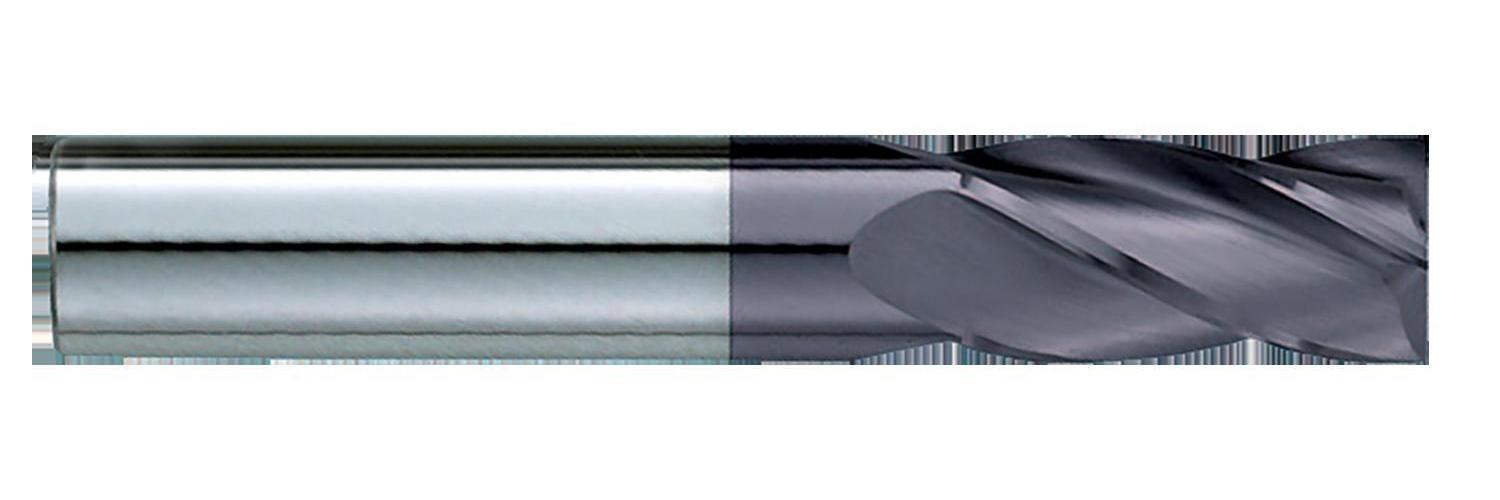

Garr 02097 GARR 1/4x1/2x2 4F TiAlN Stub Carb Endmill 170MA

Product Description

The Garr 1/4x1/2x2 4F TiAlN Stub Carb Endmill with MPN 02097 is designed for precision milling. It features a diameter of one-fourth inch and an overall length of two inches, making it suitable for various machining tasks. This endmill is made from solid submicron carbide which enhances its durability and performance.

• Material: Solid Submicron Carbide
• Flutes: Four flutes for effective cutting
• Coating: TiAlN for heat resistance and longevity

Product Highlights

Ideal for dry or semi-dry machining applications. The endmill provides high cutting efficiency and is designed for rigidity, thus optimizing performance in demanding conditions.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 02097

Technical Specifications

• Type: Center Cutting Single End Square End Stub Length
• Shank Type: Plain/Round
• Shank Length: 1.5 inches
• Series: 170MA
• Helix Angle: 30 degrees
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Cutter Diameter: 0.25 inches
• Length of Cut: 0.5 inches
• Number of Flutes: 4
• Shank Diameter: 0.25 inches
• Overall Length: 2 inches
• Finish: TiAlN Coated
