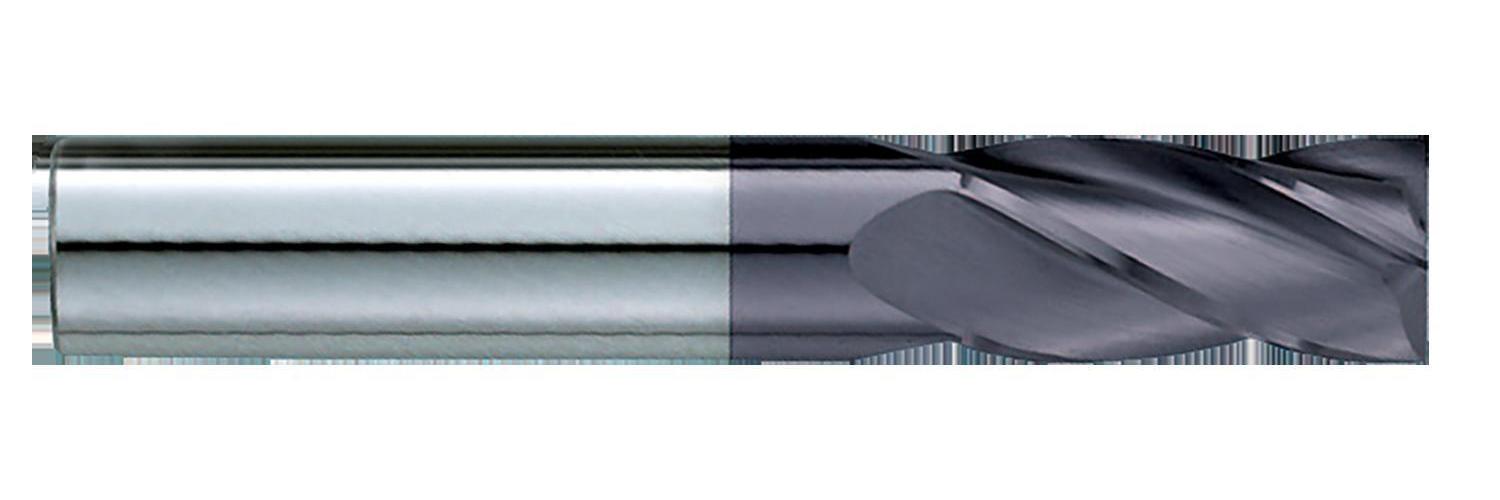

Garr 02087 170MA Center Cutting Single End Square End Stub Length End Mill, 7/32 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes

Product Description

Garr Tools offers the 02087 model, a center cutting, single end square end stub length end mill. This tool features a diameter of seven thirty-seconds of an inch and is designed for applications requiring precision cuts.

• Four flutes for efficient chip removal
• TiAlN coating for enhanced tool life
• Suitable for dry or semi-dry machining

Product Highlights

An ideal tool for milling applications, this end mill provides accurate performance and durability.

Product Information

Standard Information

• Brand: Garr Tools
• Part Number: 02087

Technical Specifications

• Type: Center Cutting Single End Square End Stub Length
• Shank Type: Plain/Round
• Shank Length: 1-9/16 inches
• Series: 170MA
• Material: Solid Submicron Carbide
• Helix Angle: 30 degrees
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Cutter Diameter: 7/32 inches
• Length of Cut: 7/16 inches
• Number of Flutes: 4
• Shank Diameter: 1/4 inches
• Overall Length: 2 inches
• Finish: TiAlN Coated
