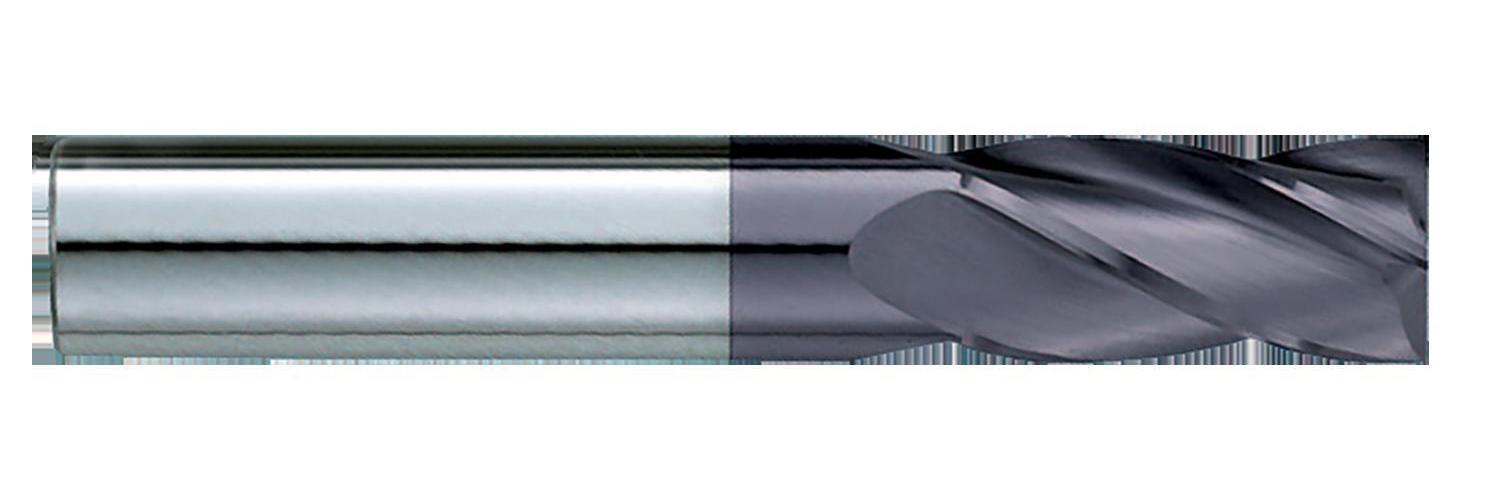

Garr 02037 170MA Center Cutting Single End Square End Stub Length End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 4 Flutes, TiALN Coated

Product Description

Garr 02037 is a center cutting single end square end stub length end mill. This tool features a diameter of 1/16 inches and an overall length of one and a half inches. It is designed for effective milling and offers efficient cutting capabilities. The 4 flute design reduces vibration during operation, making it suitable for various machining tasks.

• Manufactured from solid submicron carbide.
• Coated with TiALN for increased durability.
• Ideal for dry or semi-dry machining applications.

Product Highlights

This end mill is versatile and provides efficient performance in milling applications. Its shorter flute length enhances rigidity, offering stability during use.

Product Information

Standard Information

• Brand: Garr Tools
• Part #: 02037

Technical Specifications

• Cutter Diameter: 1/16 inch
• Shank Diameter: 1/8 inch
• Length of Cut: 1/8 inch
• Overall Length: 1-1/2 inches
• Flute Type: Spiral
• Number of Flutes: 4
• Finish: TiALN Coated
• Helix Angle: 30 degrees
