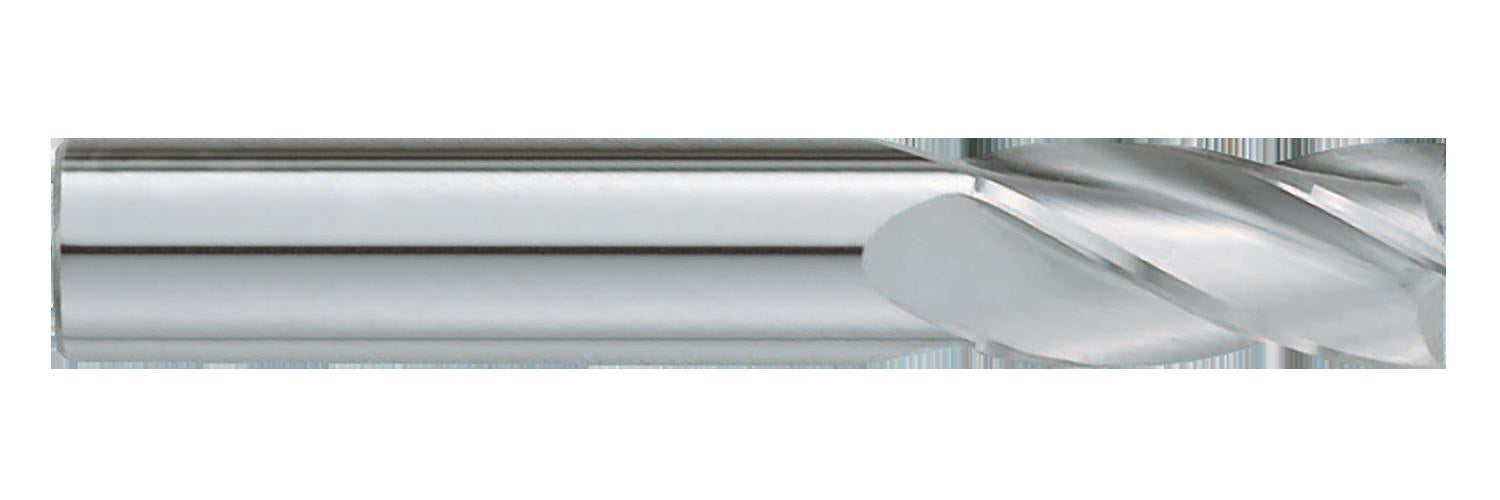

Garr 02020 170M Center Cutting Single End Square End Stub Length End Mill, 3/64 in Dia Cutter, 3/32 in Length of Cut, 4 Flutes

Product Description

The Garr 02020, also known as the 170M, is a center cutting single end square end stub length end mill designed for precision milling tasks. It has a cutter diameter of three sixty-fourths inches and an overall length of one and a half inches. This tool features four spiraled flutes that aid in efficient chip removal, making it suitable for various applications in metalworking.

• Diameter: 3/64 in
• Flute Length: 3/32 in
• Shank Diameter: 1/8 in

Product Highlights

Built from solid submicron carbide, this end mill balances strength and durability with an uncoated finish to reduce friction during operations.

Product Information

Standard Information

• Brand: Garr Tools
• Material: Solid Submicron Carbide

Technical Specifications

• Type: Center Cutting Single End Square End Stub Length
• Overall Length: 1-1/2 in
• Shank Length: 1-13/32 in
• Length of Cut: 3/32 in
• Number of Flutes: 4
• Helix Angle: 30 deg
• Cutting Direction: Right Hand
• Finish: Uncoated
