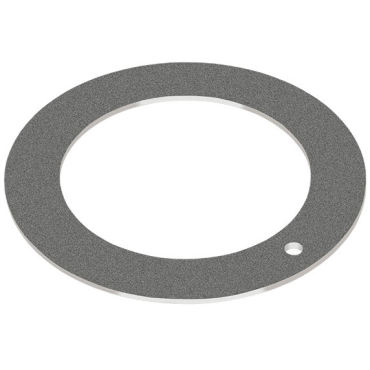

Garlock WC20DU Self Lubricating Metric DU Thrust Washer

Product Description

Garlock WC20DU is a self-lubricating metric DU thrust washer designed to provide effective performance in various applications. This product features a unique steel backing that enhances load capacity and stability. It is engineered for both radial and thrust loading, making it suitable for diverse machinery.

• High load capacity up to 20,000 psi
• Resistance to wear without traditional lubrication.
• Operates efficiently in extreme temperature ranges from -328 °F to 536 °F.

Product Highlights

This thrust washer can function dry or with minimal lubrication, adapting to many operating environments.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 102014227

Technical Specifications

• Inner Diameter: 22 mm
• Outer Diameter: 38 mm
• Thickness: 1.45 mm
• Material: PTFE
• Max. Static Pressure: 36,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range [Min]: -328 °F
• Temperature Range [Max]: 536 °F
