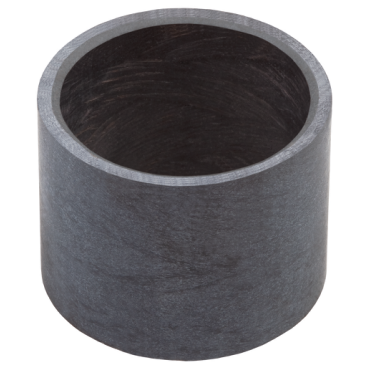

Garlock GM3640-024 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

Garlock GM3640-024 is a self-lubricating cylindrical bushing designed for heavy-duty applications. This bushing utilizes a controlled filament wound pattern made from PTFE and high-strength fibers, which are combined in a braided cord encapsulated in epoxy that contains a self-lubricating filler. The design offers a wear-resistant surface suitable for various load conditions.

• Suitable for static loads up to 30,000 psi and dynamic loads up to 20,000 psi.
• Capable of operating in a temperature range from -320 °F to 325 °F.
• Offers excellent resistance to shock loads and is ideal for pivoting applications.

Product Highlights

Garlock bearings provide a strong bearing surface capable of withstanding impact loads. Their unique composition makes them highly effective in demanding conditions.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 102002936

Technical Specifications

• I.D.: 2 1/4 in
• O.D.: 2.5 in
• Length: 1 1/2 in
• Material: PTFE
• Lubrication: Self-Lubricating
• Shaft Diameter [Min]: 2.2495 in
• Shaft Diameter [Max]: 2.25 in
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range [Min]: -320 °F
• Temperature Range [Max]: 320 °F
• Weight: 0.097 LB
• EAN or UPC: 13992730152
• Has Flange: No
• Bore Type: Round Bore
• Groove Type: No Groove
• Inch/Metric: Inch
