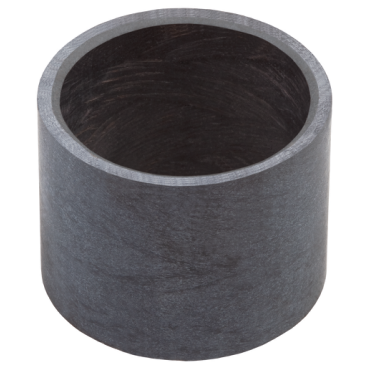

Garlock GM2432-020 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock GM2432-020 is a self-lubricating cylindrical bushing designed for high performance. It features a combination fiber surface liner, constructed from PTFE and high-strength fibers, providing excellent durability and wear resistance.

• Supports high static and dynamic loads.
• Temperature resistant from -320 degrees Fahrenheit to 325 degrees Fahrenheit.
• Self-lubricating design for reduced maintenance.

Product Highlights

This bushing is ideal for tough pivoting applications and exhibits excellent resistance to shock loads.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101976092

Technical Specifications

• Inner Diameter: 1.5 inches
• Outer Diameter: 2 inches
• Length: 1.25 inches
• Material: PTFE
• Shaft Diameter (Max): 1.5 inches
• Shaft Diameter (Min): 1.4995 inches
• Max Static Pressure: 30,000 psi
• Max Dynamic Pressure: 20,000 psi
• Temperature Range: -320 degrees Fahrenheit to 325 degrees Fahrenheit
