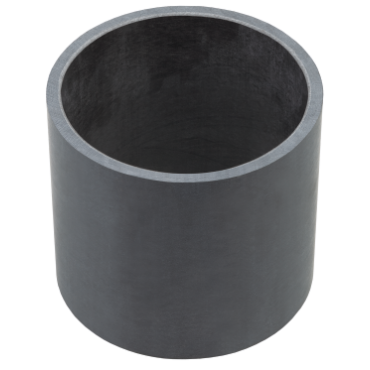

Garlock GF4856-024 Self-Lubricating GAR-FIl Cylindrical Bushing

Product Description

The Garlock GF4856-024 is a self-lubricating cylindrical bushing designed for various applications. It features a PTFE liner bonded to a composite backing for enhanced durability and performance. This bearing is suitable for scenarios where lubrication is impractical.

• Self-lubricating design
• High resistance to chemicals
• Available in multiple sizes

Product Highlights

This self-lubricating bushing is ideal for applications requiring reliability without regular maintenance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101849307

Technical Specifications

• I.D.: 3 in
• O.D.: 3.5 in
• Length: 1.5 in
• Material: PTFE
• Lubrication: Self-Lubricating
• Bore Type: Round Bore
• Temperature Range Max: 400 °F
• Temperature Range Min: -320 °F
• Max. Dynamic Pressure: 20,000 psi
• Max. Static Pressure: 20,000 psi
• Groove Type: No Groove
• Has Flange: No
• Weight: 0.266 LB
• EAN or UPC: 13992724175
