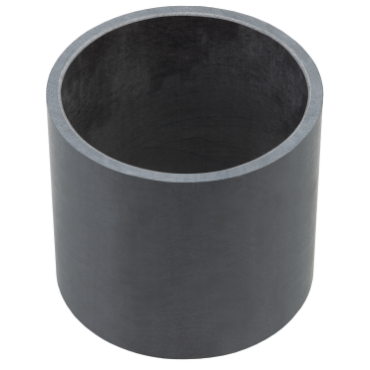

Garlock GF4852-048 Self-Lubricating GAR-FIl Cylindrical Bushing

Product Description

The Garlock GF4852-048 is a self-lubricating cylindrical bushing designed for high-performance applications. This bushing features a proprietary filled PTFE liner that helps provide extended bearing life without the need for additional lubrication.

• Max load capacity of up to 20,000 psi.
• Compatible with various corrosive and non-corrosive fluids.
• Resilient bearing surface, allowing for dirt tolerance.

Product Highlights

This product is ideal for environments where lubrication is challenging. Its robust design ensures reliability in demanding conditions.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101998420

Technical Specifications

• Inner Diameter: 3 inches
• Outer Diameter: 3.25 inches
• Length: 3 inches
• Material: PTFE
• Max Dynamic Pressure: 20,000 psi
• Max Static Pressure: 20,000 psi
• Temperature Range Min: -320 °F
• Temperature Range Max: 400 °F
