Garlock GF3236-015 Self-Lubricating GAR-FIl Cylindrical Bushing

Product Description

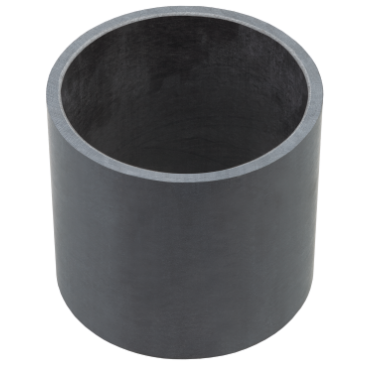

Garlock GF3236-015 is a self-lubricating cylindrical bushing designed for various applications. With a two inches inner diameter and a 2.25 inches outer diameter, this bushing is built to accommodate both static and dynamic loads up to 20,000 psi. The PTFE material offers excellent wear resistance and durability without requiring external lubrication.

• Self-lubricating PTFE liner for extended bearing life
• Resistant to damage during assembly and in service
• Can withstand a wide range of temperatures from -320 °F to 400 °F

Product Highlights

This bushing is ideal for environments where exposure to chemical substances is common. It provides versatility in applications requiring low friction and high wear resistance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: GF3236-015

Technical Specifications

• Inner Diameter: 2 inches
• Outer Diameter: 2.25 inches
• Length: 0.937 inches
• Material: PTFE
• Max Dynamic Pressure: 20,000 psi
• Max Static Pressure: 20,000 psi
• Temperature Range Max: 400 °F
• Temperature Range Min: -320 °F
