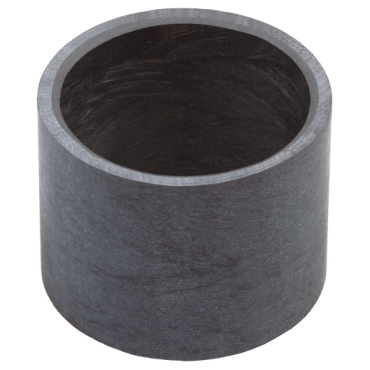

Garlock Bearings LLC GM4856-040 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

Garlock Bearings LLC GM4856-040 is a self-lubricating GAR-MAX cylindrical bushing designed for high load capacity applications. The bushing features a unique combination of PTFE and high-strength fibers embedded in epoxy resin. This design promotes a wear-resistant surface suitable for various industrial needs.

• Designed for high compressive strength up to 60,000 psi
• Effective over a temperature range from minus three hundred twenty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit
• Self-lubricating mechanism for extended wear life

Product Highlights

The GAR-MAX bearings provide excellent resistance to shock loads and perform well in tough pivoting applications. Their unique properties ensure both durability and functionality under dynamic conditions.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: GM4856-040

Technical Specifications

• Inner Diameter: 3 inches
• Outer Diameter: 3.5 inches
• Length: 2.5 inches
• Material: PTFE
• Max Static Pressure: 30,000 psi
• Max Dynamic Pressure: 20,000 psi
• Shaft Diameter Minimum: 2.999 inches
• Shaft Diameter Maximum: 3 inches
