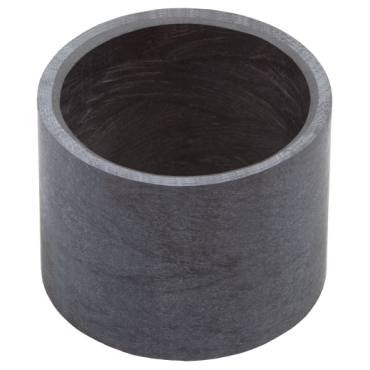

Garlock Bearings LLC GM3236-030 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

Garlock Bearings LLC offers the GM3236-030 Self-Lubricating GAR-MAX Cylindrical Bushing. This product features a fiber surface liner that combines high-strength fibers and PTFE. It is designed for wear resistance, able to perform under high static and dynamic loads.

• Works under static loads up to 30,000 psi.
• Dynamic load capability of 20,000 psi.
• Functional in temperature ranges from -320 °F to 325 °F.

Product Highlights

These bushings are suitable for various applications, particularly where durability and performance under stress are important. Ideal for pivoting applications and environments with shock loads.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101458890

Technical Specifications

• Inner Diameter: 2 inches
• Outer Diameter: 2.25 inches
• Length: 1.875 inches
• Material: PTFE
• Max. Dynamic Pressure: 20,000 psi
• Max. Static Pressure: 30,000 psi
• Temperature Range: -320 °F to 325 °F
• Lubrication: Self-Lubricating
