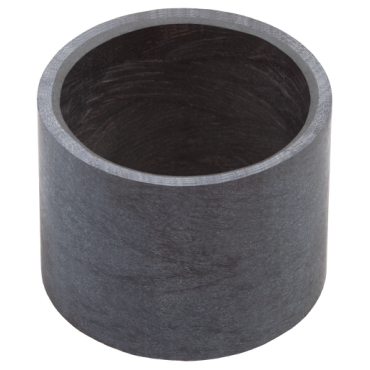

Garlock Bearings LLC GM2832-024 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock Bearings LLC GM2832-024 Self-Lubricating GAR-MAX Cylindrical Bushing is engineered to provide reliable performance in demanding applications. This bushing features a unique PTFE and fiber surface liner, offering excellent wear resistance. The GAR-MAX bushing can handle static loads up to thirty thousand psi and dynamic loads as high as twenty thousand psi. It is designed to work effectively within a temperature range from negative three hundred twenty degrees Fahrenheit to three hundred twenty degrees Fahrenheit.

• Self-lubricating design for reduced maintenance
• Effective in high load applications
• Suitable for extreme temperature conditions

Product Highlights

This bearing is ideal for pivoting applications that require high load capacity and impact resistance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 101958823

Technical Specifications

• I.D.: 1 3/4 in
• O.D.: 2 in
• Length: 1 1/2 in
• Weight: 0.076 LB
• Material: PTFE
• Bore Type: Round Bore
• Groove Type: No Groove
• Lubrication: Self-Lubricating
• Shaft Dia. [Min]: 1.7495 in
• Shaft Dia. [Max]: 1.75 in
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range [Max]: 320 °F
• Temperature Range [Min]: -320 °F
• Inch/Metric: Inch
• EAN or UPC: 13992728661
