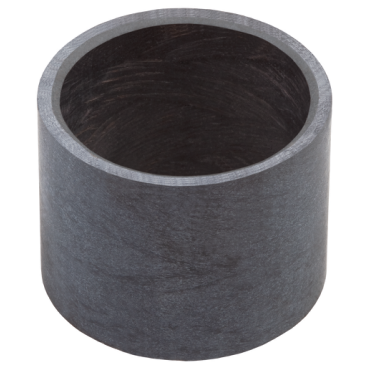

Garlock Bearings LLC GM2428-008 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock Bearings LLC GM2428-008 is a self-lubricating GAR-MAX cylindrical bushing designed for various applications. It features a combination fiber surface liner that integrates PTFE and high-strength fibers, enhancing its wear resistance. This product can handle static loads up to thirty thousand psi and dynamic loads up to twenty thousand psi, making it suitable for heavy-duty use.

• Inner diameter of one and a half inches
• Outer diameter of one point seventy-five inches
• Length of half an inch

Product Highlights

GAR-MAX bushings provide excellent resistance to shock loads and are ideal for challenging pivoting applications. Their unique properties ensure high load capacity and impact resistance, alongside thermal stability and corrosion resistance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part No.: 101936355

Technical Specifications

• Inner Diameter: 1.5 inches
• Outer Diameter: 1.75 inches
• Length: 0.5 inches
• Material: PTFE
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range (Min): -320 °F
• Temperature Range (Max): 320 °F
• Bore Type: Round Bore
• Flange: No
• Groove Type: No Groove
• Weight: 0.022 lb
• EAN or UPC: 13992727855
