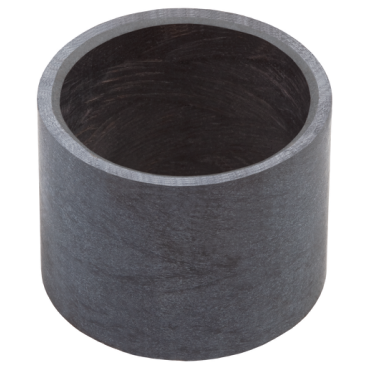

Garlock Bearings LLC GM2024-008 Self-Lubricating GAR-MAX® Cylindrical Bushing

Product Description

Garlock Bearings LLC offers the GM2024-008 Self-Lubricating GAR-MAX® Cylindrical Bushing. This product features a combination fiber surface liner consisting of PTFE and high strength fibers. The materials form a strong cord encapsulated by epoxy resin that provides a wear-resistant bearing surface.

• Inner Diameter of one point two five inches
• Outer Diameter of one point five inches
• Length of half an inch

Product Highlights

This bushing is designed to operate under high static loads up to thirty thousand psi and dynamic loads up to twenty thousand psi, making it suitable for demanding applications.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101471638

Technical Specifications

• Inner Diameter: 1 1/4 inches
• Outer Diameter: 1.5 inches
• Length: 0.5 inches
• Material: PTFE
• Max Dynamic Pressure: 20,000 psi
• Max Static Pressure: 30,000 psi
• Temperature Range: -320 °F to 325 °F
• Lubrication: Self-Lubricating
• Bore Type: Round Bore
• Groove Type: No Groove
• Weight: 0.019 LB
• EAN or UPC: 13992727008
