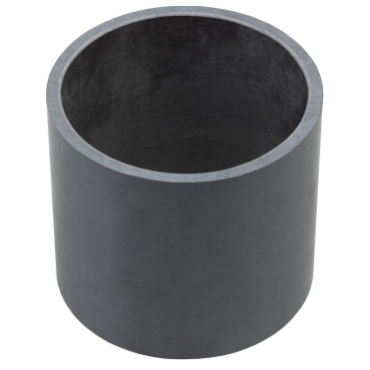

Garlock Bearings LLC GF2832-024 Self-Lubricating GAR-FIl Cylindrical Bushing

Product Description

The Garlock Bearings LLC GF2832-024 is a self-lubricating GAR-FIl cylindrical bushing designed for high performance in various applications. This bushing features a proprietary filled PTFE liner that is bonded to a durable epoxy-glass filament wound composite backing. This design enhances bearing life without the need for additional lubrication.

• 1.75 inches inner diameter and 2 inches outer diameter
• Max static and dynamic pressure capabilities of 20,000 psi
• Temperature range from -320 °F to 400 °F

Product Highlights

Ideal for applications requiring high load capacity and resistance to wear, the GF2832-024 cylindrical bushing excels in harsh environments.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: GF2832-024

Technical Specifications

• Inner Diameter: 1.75 inches
• Outer Diameter: 2 inches
• Length: 1.5 inches
• Material: PTFE
• Max Static Pressure: 20,000 psi
• Max Dynamic Pressure: 20,000 psi
• Shaft Diameter (Max): 1.75 inches
• Shaft Diameter (Min): 1.7495 inches
• Temperature Range (Min): -320 °F
• Temperature Range (Max): 400 °F
• Lubrication: Self-Lubricating
• Bore Type: Round Bore
• Has Flange: No
• Groove Type: No Groove
• Weight: 0.076 LB
• EAN or UPC: 13992723031
