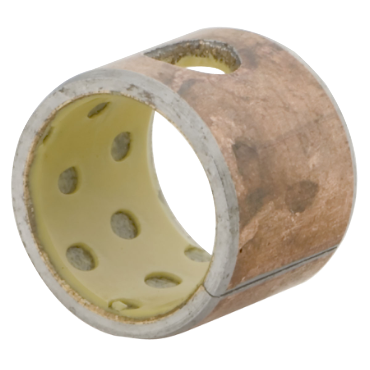

Garlock Bearings LLC 32DXR16 Pre-Lubricated DXR Cylindrical Bushing

Product Description

The Garlock Bearings LLC 32DXR16 is a pre-lubricated DXR cylindrical bushing designed for various applications. This bushing utilizes a steel-backed material that requires minimal lubrication, making it efficient for long-term use. It can be resized on-site through methods such as boring or reaming, which aids in correcting misalignment during installation.

• Steel-backed material offers strength and rigidity.
• Suitable for oscillating and rotating applications.
• Temperature tolerance ranges from negative forty degrees Fahrenheit to two hundred ten degrees Fahrenheit.

Product Highlights

This cylindrical bushing is engineered for high load capacities and is compatible with various lubricants, enhancing its versatility across numerous industrial uses.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 101988338

Technical Specifications

• Inner Diameter: 2 inches
• Outer Diameter: 2.19 inches
• Length: 1 inch
• Material: POM
• Max. Dynamic Pressure: 10,000 psi
• Max. Static Pressure: 20,000 psi
• Temperature Range [Max]: 210 degrees Fahrenheit
• Temperature Range [Min]: -40 degrees Fahrenheit
