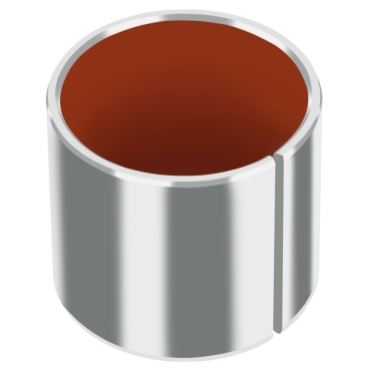

Garlock Bearings LLC 08DP406 DP4 Bushing

Product Description

The Garlock Bearings LLC 08DP406 is a DP4 bushing suitable for various applications. This product features a half-inch inner diameter and a slightly larger outer diameter of zero point five nine four inches. It is designed for broad functionality in both dry and lubricated environments.

• Suitable for linear, oscillating, and rotating movements
• Self-lubricating properties
• Lead-free material compliant with RoHS regulations

Product Highlights

These bushings offer excellent wear resistance and low friction performance, making them ideal for applications across a wide range of loads and temperatures.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 103173450

Technical Specifications

• Inner Diameter: 1/2 inch
• Outer Diameter: 0.5940 inch
• Length: 3/8 inch
• Material: PTFE Based Metal Polymer
• Max. Dynamic Pressure: 20,000 psi
• Max. Static Pressure: 36,000 psi
• Temperature Range [Min]: -200 °F
• Temperature Range [Max]: 280 °F
• Bore Type: Round Bore
• Groove Type: No Groove
• Has Flange: No
• Weight: 0.008 LB
