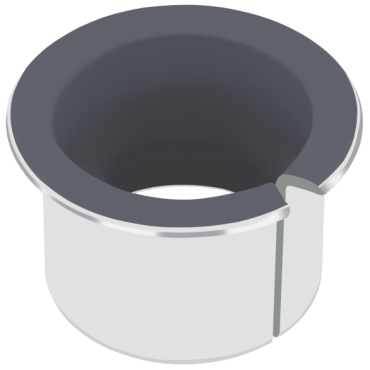

Garlock BB1212DU Self-Lubricating Metric DU Flanged Bushing

Product Description

The Garlock BB1212DU is a self-lubricating metric DU flanged bushing designed for optimal performance. With an inner diameter of twelve millimeters and an outer diameter of fourteen millimeters, this bushing provides durability and reliability in various applications. The PTFE material ensures that the bushing offers excellent wear resistance and can operate effectively across a wide temperature range.

• Inner Diameter: 12 mm
• Outer Diameter: 14 mm
• Length: 12 mm

Product Highlights

This bushing is ideal for applications needing reliable lubrication without maintenance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: BB1212DU

Technical Specifications

• Max. Static Pressure: 36,000 psi
• Outer Diameter: 14 mm
• Bore Type: Round Bore
• Has Flange: Yes
• Lubrication: Self-Lubricating
• Inner Diameter: 12 mm
• Length: 12 mm
• Material: PTFE
• Max. Dynamic Pressure: 20,000 psi
• Flange Thickness: 1 mm
• Temperature Range [Max]: 536 °F
• Temperature Range [Min]: -328 °F
• Groove Type: No Groove
• Weight: 0.01 LB
• EAN or UPC: 13992495259
