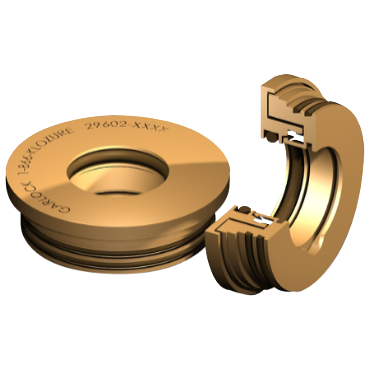

Garlock 29602-4203 Guardian Metallic Bearing Isolator 5 Inch Shaft 6.25 Inch Bore

Product Description

The Garlock 29602-4203 Guardian Metallic Bearing Isolator is designed for use in applications requiring efficient sealing and bearing protection. It offers a reliable non-contact seal design that provides optimum performance without lubrication.

• Patented Cam-Lock system ensures a secure fit
• Unitized construction prevents disassembly during installation
• Press-fit design for easy installation

Product Highlights

This bearing isolator is suitable for various industrial applications including pumps and motors. It effectively retains lubrication and excludes contamination, extending bearing life and reducing downtime.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29602-4203

Technical Specifications

• Shaft Diameter: 5 in
• Housing Bore: 6.25 in
• Width: 0.7 in
• Flange Length: 0.325 in
• Temperature Range: -22 to 400 °F
• Surface Speed: 12,000 ft/min
• Weight: 3.39 lb
• Seal Type: Labyrinth
