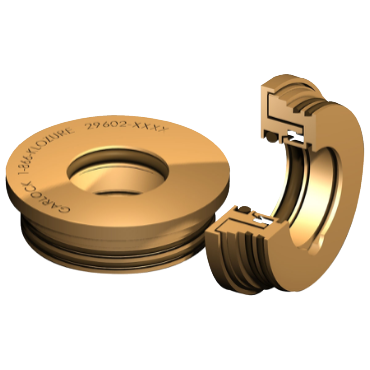

Garlock 29602-4112 Guardian Metallic Bearing Isolator

Product Description

The Garlock 29602-4112 Guardian Metallic Bearing Isolator provides an effective solution for bearing protection. This isolator features solid construction for durability and a flanged design for easy installation. Its non-contacting seal design minimizes friction and ensures that there is no lubrication needed.

• Patented Cam-Lock system for a secure fit
• Temperature range from -22 degrees Fahrenheit to 400 degrees Fahrenheit
• Supports predictive maintenance programs

Product Highlights

This product is suited for various industrial applications including pumps, motors, and gearboxes. It helps reduce unscheduled downtime and enhances the lifespan of bearings.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29602-4112

Technical Specifications

• Shaft Diameter: 2.375 inches
• Housing Bore: 3.25 inches
• Flange Length: 0.325 inches
• Width: 0.7 inches
• Misalignment Size: ± 0.02 inches
• Temperature Range [Min]: -22 degrees Fahrenheit
• Temperature Range [Max]: 400 degrees Fahrenheit
• Construction: Solid
• Seal Type: Labyrinth
