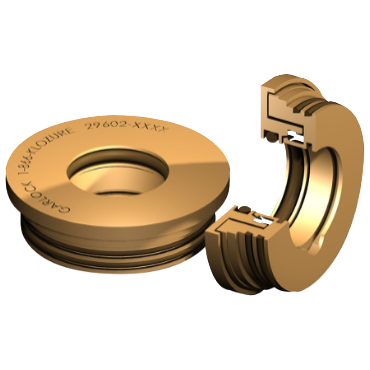

Garlock 29602-4109 Guardian Metallic Bearing Isolator 2.125 inch Shaft 2.875 inch Bore

Product Description

The Garlock 29602-4109 Guardian Metallic Bearing Isolator is designed for effective bearing protection, featuring a patented Cam-Lock system. This unit minimizes friction and wear, promoting long-lasting performance. The non-contacting seal design eliminates shaft scoring without lubrication.

• Effective barrier against contamination.
• Easy installation without tools required.
• Extended bearing life and reduced maintenance needs.

Product Highlights

This isolator provides reliable sealing performance across various applications, including pumps and motors. It is particularly useful in environments where contamination control is critical.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29602-4109

Technical Specifications

• Shaft Diameter: 2.125 inches
• Housing Bore: 2.875 inches
• Width: 0.7 inches
• Temperature Range: -22 °F to 400 °F
• Seal Type: Labyrinth
• Misalignment Size: ± 0.02 inches
• Flange Length: 0.325 inches
• Construction: Solid
