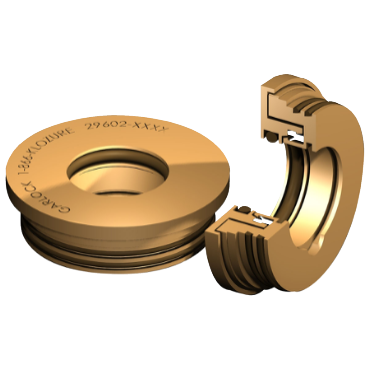

Garlock 29602-4104 Guardian Metallic Bearing Isolator

Product Description

The Garlock 29602-4104 Guardian Metallic Bearing Isolator is designed to provide effective sealing and protection for various applications. This model features a patented Cam-Lock system for a secure fit and a non-contacting seal design that minimizes shaft scoring and friction heat.

• Supports predictive maintenance programs and reduces downtime
• Solid construction prevents assembly issues during installation
• Easy installation with no tools required

Product Highlights

This isolator is built to improve lifecycle and reliability while maintaining lubrication integrity.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29602-4104

Technical Specifications

• Shaft Diameter: 1.375 in
• Housing Bore: 2.835 in
• Width: 0.7 in
• Flange Length: 0.325 in
• Seal Type: Labyrinth
• Surface Speed [Nom]: 12,000 ft/min
• Temperature Range [Max]: 400 °F
• Temperature Range [Min]: -22 °F
• Construction: Solid
• Weight: 1.5 LB
• EAN or UPC: 717744570101
