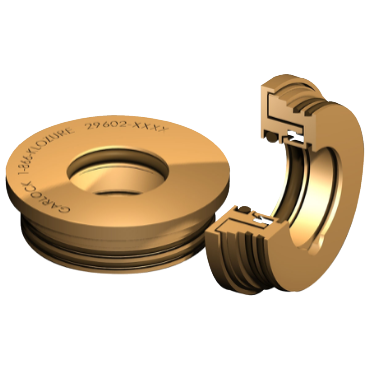

Garlock 29602-0774 Guardian Metallic Bearing Isolator Flanged Bronze 3.375 Inch Shaft 4.375 Inch Bore

Product Description

The Garlock 29602-0774 Guardian Metallic Bearing Isolator is designed for effective sealing in various industrial applications. This isolator features a non-contact labyrinth seal, which helps to ensure performance without lubrication. Its construction prevents metal-to-metal contact, which reduces wear and extends the life of bearings.

• Patented Cam-Lock system for a secure fit
• Supports predictive maintenance to minimize downtime
• Easy installation without tools required

Product Highlights

This product is ideal for applications in pumps, motors, and gearboxes, particularly in industries like steel, aluminum, and chemical.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29602-0774

Technical Specifications

• Shaft Diameter: 3.375 inches
• Housing Bore: 4.375 inches
• Width: 0.7 inches
• Flange Length: 0.325 inches
• Max Temperature: 400 °F
• Min Temperature: -22 °F
• Weight: 1.81 lbs
• Seal Type: Labyrinth
• Material: Bronze and PTFE
