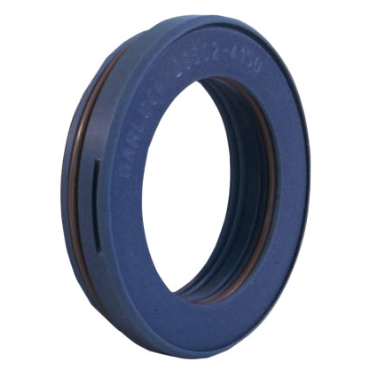

Garlock 29507-4718 ISO-GARD Bearing Isolator

Product Description

The Garlock ISO-GARD Bearing Isolator with MPN 29507-4718 is engineered to protect bearings in various industrial applications. This bearing isolator features a patented Cam-Lock system that ensures a secure fit, minimizing the risk of shaft scoring and drag. The labyrinth seal design eliminates the need for lubrication while effectively protecting bearings from contamination.

• Non-contact seal design
• Press-fit for easy installation
• Excellent chemical resistance

Product Highlights

This product supports preventative maintenance programs, reducing unscheduled downtime. It is suitable for pumps, motors, and gearboxes across multiple industries.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29507-4718

Technical Specifications

• Shaft Diameter: 1.575 in
• Housing Bore: 2.047 in
• Width: 0.626 in
• Flange Length: 0.375 in
• Construction: Solid
• Pressure: 5 psi
• Temperature Range: -22 to 400 °F
• Material: Filled PTFE
• Seal Type: Labyrinth
