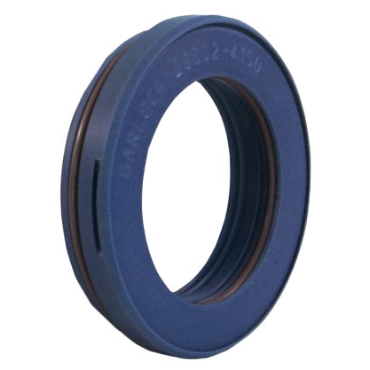

Garlock 29502-4108 ISO-GARD Bearing Isolator

Product Description

The Garlock ISO-GARD Bearing Isolator with MPN 29502-4108 is designed for effective sealing in various applications. This product features a patented Cam-Lock system that ensures a secure fit, preventing any unwanted leakage.

• 1 1/8 inch shaft diameter
• 2 inch housing bore
• 3/4 inch width

Product Highlights

This isolator is made from solid construction materials that enhance durability. It employs a noncontacting seal design, which eliminates issues like shaft scoring and frictional heat without lubrication.

Product Information

Standard Information

• Brand: Garlock
• MPN: 29502-4108

Technical Specifications

• Construction: Solid
• Housing Bore: 2 inches
• Shaft Diameter: 1.125 inches
• Flange Length: 3/8 inch
• Temperature Range [Min]: -22 °F
• Temperature Range [Max]: 400 °F
• Pressure Tolerance: Ambient
• Seal Type: Labyrinth
• O-Ring Material: FKM
• PTFE Material: Blue, Glass-Filled
• Weight: 0.122 LB
• EAN or UPC: 717744164638
