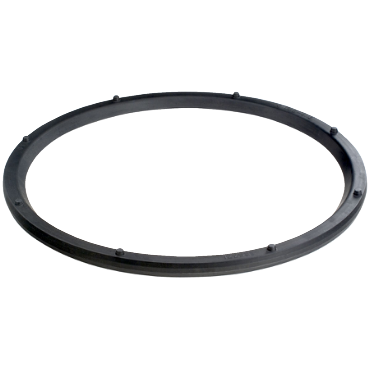

Garlock 26088-5116 Model 88 Single Lip Seal with Springs

Product Description

The Garlock Model 88 Single Lip Seal with Springs, MPN 26088-5116, is designed for effective sealing in various applications. This shaft seal is ideal for environments requiring robust containment and protection against leakage.

• Suitable for severe service applications
• Designed for shafts with a diameter of sixteen inches
• Maximum pressure of seven psi

Product Highlights

This seal is constructed from durable materials such as metal reinforced rubber and is suitable for significant temperature fluctuations.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 26088-5116

Technical Specifications

• Seal Design: Solid Design
• Shaft Diameter: 16 in
• Housing Bore Diameter: 18 in
• Width: 3/4 in
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -40 °F
• Surface Speed [Max]: 5000 ft/min
• Misalignment Tolerance: 0.025 in @ 5000 ft/min, 0.050 in @ 2500 ft/min
