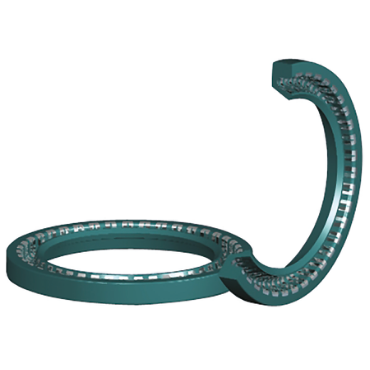

Garlock 25003-9646 Model 23 Single Lip Seal with Springs

Product Description

The Garlock Model 23 Single Lip Seal with Springs is identified by MPN 25003-9646. This seal is designed for general-purpose applications and is suitable for a variety of sealing needs.

• Compliance with industry standards
• Crafted from durable materials for long-lasting performance
• Designed for effective sealing in rotating applications

Product Highlights

This seal features a molded rubber outer diameter with a single lip design, reinforced with stainless steel springs to ensure reliable operation.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749043

Technical Specifications

• Misalignment Tolerance: 0.01 in
• Spring Material: Stainless Steel
• Inch/Metric: Inch
• Lip Style: Internal
• Lip Material: Mill-Right N
• Cover Required: Yes
• Max Surface Speed: 2,000 ft/min
• Housing Bore Diameter: 5 1/16 in
• Lip Type: Single Lip w/Spring
• Shaft Diameter: 3.9375 in
• Temperature Range: -40 °F to 200 °F
• Seal Application: General Purpose
• Case Construction: Molded Rubber OD
• Pressure Max: N/A
• Construction Type: Model 23
• Lip Base Material: Nitrile
• Misalignment & Runout: 0.010@1000, .005@2000
• Seal Design: Split Seal
• Weight: 0.331 LB
• EAN/UPC: 717744064143
