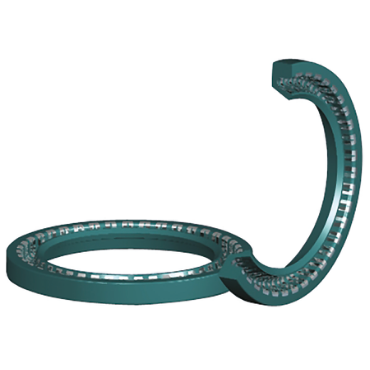

Garlock 25003-6204 Model 23 Single Lip Seal with Springs

Product Description

The Garlock Model 23 Single Lip Seal with Springs, MPN 25003-6204, is designed to create a reliable seal for rotating equipment. This seal is constructed for durability and efficiency in various applications such as pumps and gearboxes. It plays a crucial role in preventing leakage and ensuring smooth operations.

• Compatible with shaft diameters of eight point twenty-five inches
• Housings with a bore diameter of nine point twenty-five inches
• Suitable for temperature ranges from minus forty to two hundred degrees Fahrenheit

Product Highlights

This seal features a split design for easy installation and maintenance. Its spring-loaded lip ensures a tight fit, helping to manage misalignment and runout effectively.

Product Information

Standard Information

• Brand: Garlock
• MPN: 25003-6204

Technical Specifications

• Lip Type: Single Lip w/Spring
• Seal Design: Split Seal
• Shaft Diameter: 8.25 in
• Housing Bore Diameter: 9.25 in
• Overall Width: 0.438 in
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -40 °F
• Surface Speed [Max]: 2,000 ft/min
• Spring Material: Stainless Steel
• Material: Mill-Right N
• Misalignment Tolerance: 0.010 in @ 1,000 ft/min; 0.005 in @ 2,000 ft/min
