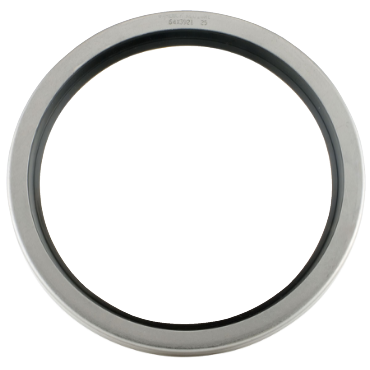

Garlock 21238-9863 Model 64 Single Lip Seal with Springs

Product Description

The Garlock 21238-9863 Model 64 Single Lip Seal with Springs is designed for severe service applications. This seal features a single lip design and a combination of garter and finger springs for enhanced sealing performance. It provides reliable sealing for shafts with a diameter of sixteen and one-half inches and is suitable for use in challenging environments.

• Shaft Diameter: Sixteen and one-half inches
• Housing Bore Diameter: Eighteen inches
• Width: Eleven sixteenths of an inch

Product Highlights

This seal is engineered for maximum performance and durability in heavy-duty applications.

Product Information

Standard Information

• Brand: Garlock
• MPN: 21238-9863

Technical Specifications

• Lip Material: Mill-Right N
• Spring Material: Combination Stainless Steel Garter and Finger
• Shaft Diameter: 16.5 inches
• Housing Bore Diameter: 18 inches
• Width: 0.688 inches
• Maximum Pressure: 7 psi
• Temperature Range: -40 to 200 degrees Fahrenheit
• Construction: Heavy-Duty Carbon Steel
• Misalignment Tolerance: 0.125 inches
• Surface Speed Maximum: 7000 feet per minute
