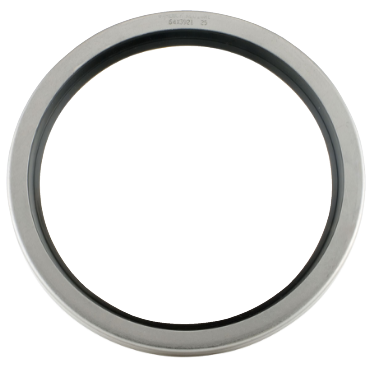

Garlock 21238-4235 Model 64 Single Lip Seal with Springs

Product Description

The Garlock Model 64 Single Lip Seal with Springs, MPN 21238-4235, is designed for various sealing applications. It features a robust construction suitable for severe service applications. The seal is capable of handling high temperatures and pressures, making it ideal for use in different industrial sectors.

• 20 inches shaft diameter
• 21 and a half inches housing bore diameter
• ¾ inches width

Product Highlights

This product offers high efficiency and durability due to its unique design.

Product Information

Standard Information

• Brand: Garlock
• MPN: 21238-4235

Technical Specifications

• Shaft Diameter: 20 inches
• Housing Bore Diameter: 21.5 inches
• Overall Width: 0.75 inches
• Seal Design: Assembled Seal
• Lip Type: Single Lip with Combined Garter and Finger Spring
• Temperature Range Max: 200 °F
• Temperature Range Min: -40 °F
• Max Pressure: 7 psi
• Weight: 5.35 lbs
• Material: Mill-Right N
• Surface Speed Max: 7,000 ft/min
• Misalignment Tolerance: 0.125 inches at 5,000 ft/min; 0.093 inches at 7,000 ft/min
