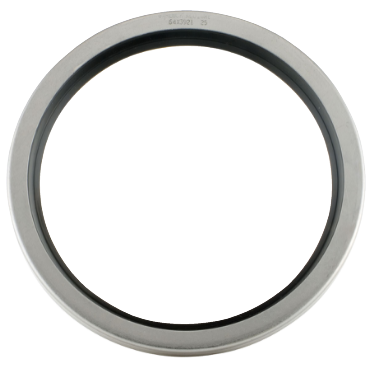

Garlock 21238-4121 Model 64 Single Lip Seal with Springs

Product Description

The Garlock Model 64 Single Lip Seal with Springs, MPN 21238-4121, is designed for severe service applications. It provides a reliable sealing solution for rotating equipment in various industrial settings. This oil seal is compatible with shafts having a diameter of thirteen and a half inches and is suited for a housing bore of fifteen inches. Its single lip design combined with a unique garter spring mechanism allows for effective sealing even under high shaft runout conditions.

• Severe service application
• Compatible with high-speed operation up to seven thousand feet per minute
• Built from heavy-duty carbon steel for durability

Product Highlights

This seal's structured design mitigates issues related to displaced springs, offering longevity and low maintenance. The lip material, Mill-Right N, enhances its heat resistance and chemical compatibility.

Product Information

Standard Information

• Construction: Model 64
• Shaft Diameter: 13.5 inches

Technical Specifications

• Housing Bore Diameter: 15 inches
• Overall Width: 0.688 inches
• Misalignment Tolerance: 0.125 inches
• Seal Application: Severe Service
• Temperature Range: -40 °F to 200 °F
• Pressure Max: 7 psi
• Surface Speed Max: 7,000 ft/min
• Weight: 3.25 lbs
