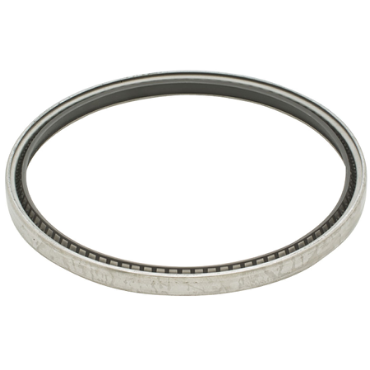

Garlock 21086-3935 Model 53 Single Lip Seal with Springs

Product Description

The Garlock 21086-3935 is a Model 53 Single Lip Seal with Springs designed for effective sealing in various applications. This seal is suitable for shafts measuring eight and one-half inches in diameter and housing bores of nine and one-half inches. The width of the seal is five-eighths inches, making it a reliable option for general purposes.

• Spring material is stainless steel for enhanced durability.
• Temperature range spans from negative forty degrees Fahrenheit to two hundred degrees Fahrenheit.
• Designed to handle a maximum pressure of seven psi with excellent misalignment tolerance.

Product Highlights

This seal is specifically designed for general-purpose sealing, featuring a single lip design with a finger spring for optimal performance.

Product Information

Standard Information

• Brand: Garlock
• Part #: 101889238

Technical Specifications

• Weight: 1.085 LB
• Shaft Diameter: 8.5 in
• Housing Bore Diameter: 9.5 in
• Width: 0.625 in
• Lip Style: Internal
• Lip Type: Single Lip with Finger Spring
• Temperature Range (Min): -40 °F
• Temperature Range (Max): 200 °F
• Pressure (Max): 7 psi
• Surface Speed (Max): 3,000 ft/min
• Construction: Heavy-Duty Carbon Steel
• Seal Design: Assembled Seal
• Misalignment Tolerance: 0.015 in
• EAN or UPC: 717744005986
