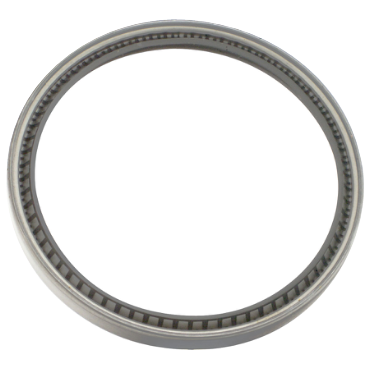

Garlock 21086-3426 Model 53 Single Lip Seal with Springs

Product Description

The Garlock 21086-3426 is a Model 53 Single Lip Seal equipped with springs designed for various sealing applications. This seal is constructed for efficiency in sealing rotating shafts, preventing leaks and contaminants from entering or exiting the equipment. It is suitable for general-purpose use in various industries.

• Shaft diameter: six and one half inches
• Housing bore diameter: seven and one half inches
• Width: five eighths inches

Product Highlights

Use this seal in pumps, motors, and other machinery requiring reliable sealing solutions.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 101973680

Technical Specifications

• Pressure [Max]: 7 psi
• Spring Material: Stainless Steel
• Housing Bore Diameter: 7.5 inches
• Lip Base Material: Nitrile
• Misalignment Tolerance: 0.015 inches
• Lip Material: Mill-Right N
• Misalignment & Runout: 0.015@1000, 0.010@2000, 0.005@3000
• Lip Style: Internal
• Lip Type: Single Lip with Finger Spring
• Construction: Model 53
• Shaft Diameter: 6.5 inches
• Case Construction: Heavy-Duty Carbon Steel
• Seal Application: General Purpose
• Seal Design: Assembled Seal
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -40 °F
• Surface Speed [Max]: 3,000 ft/min
• Weight: 0.843 LB
• EAN or UPC: 717744004231
