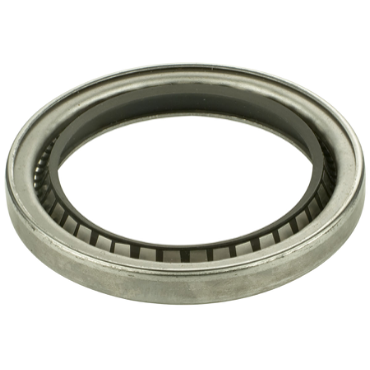

Garlock 21086-3394 Model 53 Single Lip Seal with Springs

Product Description

The Garlock 21086-3394 Model 53 Single Lip Seal with Springs is designed for reliable sealing in various applications. This shaft seal accommodates a shaft diameter of six and one-fourth inches and a housing bore diameter of seven and one-half inches. It features a durable construction made of heavy-duty carbon steel.

• Maximum surface speed of 3,000 feet per minute
• Temperature range from minus forty to two hundred degrees Fahrenheit
• Single lip design with finger spring for better sealing performance

Product Highlights

This seal is suitable for general-purpose applications and can handle a maximum pressure of seven psi. The assembly is constructed without a cover or compensation ring, ensuring easy installation.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749145

Technical Specifications

• Surface Speed [Max]: 3,000 ft/min
• Inch/Metric: Inch
• Lip Style: Internal
• Cover/Compensation Ring/Plate Required: No
• Temperature Range [Max]: 200 °F
• Seal Application: General Purpose
• Pressure [Max]: 7 psi
• Lip Type: Single Lip w/Finger Spring
• Lip Material: Mill-Right N
• Housing Bore Dia.: 7 1/2 in
• Construction: Model 53
• Lip Base Material: Nitrile
• Misalignment Tolerance: 0.015 in
• Temperature Range [Min]: -40 °F
• Case Construction: Heavy-Duty Carbon Steel
• Seal Design: Assembled Seal
• Spring Material: Stainless Steel
• Misalignment & Runout (In. @ Feet Per Minute): 0.015@1000, 0.010@2000, 0.005@3000
• Shaft Dia.: 6.25 in
• Weight: 0.786 LB
• EAN or UPC: 717744004101
