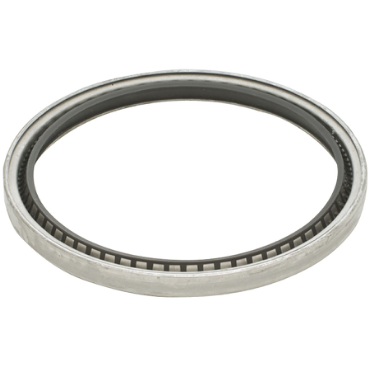

Garlock 21086-3275 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with Springs, identified by MPN 21086-3275, is designed for use in various sealing applications. It features a shaft diameter of five and three-quarters inches and a housing bore diameter of six and three-quarters inches. This seal is constructed from Nitrile with a stainless steel spring, making it suitable for general-purpose applications.

• Easy installation with no required cover or plate
• Heavy-duty carbon steel case construction
• Temperature range from negative forty to two hundred degrees Fahrenheit

Product Highlights

The design includes a single lip with a finger spring to enhance sealing efficiency.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749132

Technical Specifications

• Shaft Diameter: 5.75 inches
• Housing Bore Diameter: 6.75 inches
• Width: 0.5 inches
• Lip Material: Mill-Right N
• Lip Base Material: Nitrile
• Maximum Pressure: 7 psi
• Temperature Range (Max): 200 °F
• Temperature Range (Min): -40 °F
• Misalignment Tolerance: 0.015 inches
• Surface Speed (Max): 3,000 ft/min
• Seal Application: General Purpose
