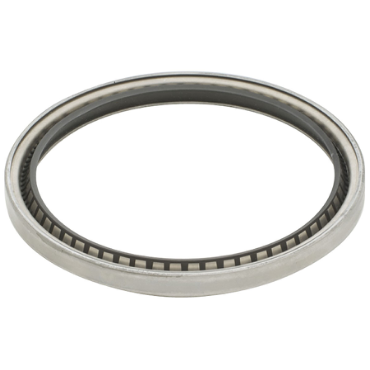

Garlock 21086-3176 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with Springs has a part number of 21086-3176. This shaft seal is designed for use in various general-purpose applications, providing a reliable sealing solution for rotating shafts. It accommodates a shaft diameter of five and one-half inches and a housing bore diameter of six and one-half inches.

• Durable construction using heavy-duty carbon steel
• Temperature range from negative forty degrees Fahrenheit to two hundred degrees Fahrenheit
• Maximum pressure rating of seven psi

Product Highlights

This seal features a single lip design with a finger spring, enhancing its sealing capabilities and providing excellent performance in dynamic applications.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 21086-3176

Technical Specifications

• Construction: Model 53
• Lip Type: Single Lip with Finger Spring
• Shaft Diameter: 5.5 inches
• Housing Bore Diameter: 6.5 inches
• Width: 0.5 inches
• Surface Speed (Max): 3,000 feet per minute
• Lip Base Material: Nitrile
• Lip Material: Mill-Right N
• Spring Material: Stainless Steel
• Pressure (Max): 7 psi
• Misalignment Tolerance: 0.015 inches
• Temperature Range (Min): -40 degrees Fahrenheit
• Temperature Range (Max): 200 degrees Fahrenheit
• Seal Design: Assembled Seal
• Seal Application: General Purpose
• Case Construction: Heavy-Duty Carbon Steel
• EAN or UPC: 717744003609
• Weight: 0.58 pounds
