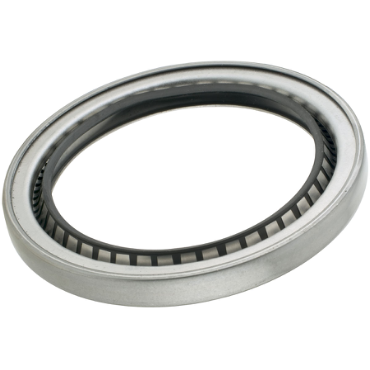

Garlock 21086-2468 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with Springs, MPN 21086-2468, is designed for effective sealing in rotating equipment. This oil seal is suitable for applications where leakage prevention is critical.

• 3.75 inches shaft diameter
• 4.999 inches housing bore diameter
• Temperature range from -40 to 200 degrees Fahrenheit

Product Highlights

This seal is ideal for use in general-purpose settings, including gearboxes, pumps, and other industrial applications.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 21086-2468

Technical Specifications

• Lip Base Material: Nitrile
• Housing Bore Diameter: 4.999 inches
• Shaft Diameter: 3.75 inches
• Temperature Range Maximum: 200 degrees Fahrenheit
• Temperature Range Minimum: -40 degrees Fahrenheit
• Seal Application: General Purpose
• Construction: Model 53
• Pressure Maximum: 7 psi
• Surface Speed Maximum: 3000 ft/min
• Misalignment Tolerance: 0.015 inches
• Weight: 0.484 pounds
• EAN or UPC: 717744001728
