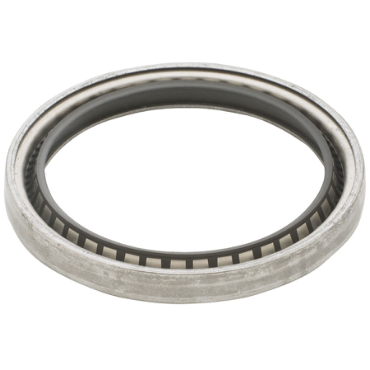

Garlock 21086-2462 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with Springs, MPN 21086-2462, is designed for general purpose sealing applications. This shaft seal is built with a shaft diameter of three and three-quarter inches and a housing bore diameter of four and three-quarter inches. It has a width of half an inch, making it suitable for various industrial applications.

• Durable construction for reliable sealing
• Temperature range from minus forty degrees Fahrenheit to two hundred degrees Fahrenheit
• Single lip design with finger spring for effective sealing

Product Highlights

This model provides a robust sealing solution to prevent leakage in rotating shafts.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 21086-2462

Technical Specifications

• Seal Application: General Purpose
• Lip Material: Mill-Right N
• Lip Base Material: Nitrile
• Pressure [Max]: 7 psi
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -40 °F
• Shaft Diameter: 3.75 in
• Housing Bore Diameter: 4 3/4 in
• Surface Speed [Max]: 3,000 ft/min
• Spring Material: Stainless Steel
• Misalignment Tolerance: 0.015 in
• Weight: 0.368 LB
• EAN or UPC: 717744001681
