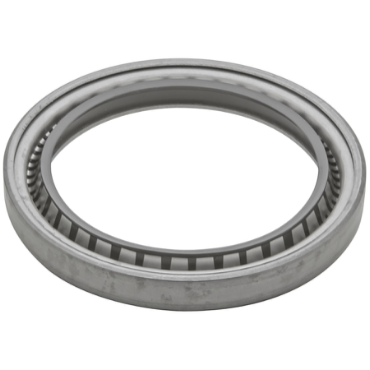

Garlock 21086-2270 Model 53 Single Lip Seal with Springs

Product Description

The Garlock 21086-2270 is a single lip seal designed to provide reliable sealing for various applications. The model is ideal for use in general purpose sealing tasks. With its robust design, it accommodates shaft diameters of three and one-quarter inches and a housing bore diameter of four point two four nine inches.

• Single lip design with finger spring
• Temperature range from negative forty to two hundred degrees Fahrenheit
• Compatible with heavy-duty carbon steel cases

Product Highlights

This seal is essential for maintaining the integrity of rotating equipment by preventing leaks and contaminants from entering.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749063

Technical Specifications

• Seal Design: Assembled Seal
• Shaft Diameter: 3.25 in
• Housing Bore Diameter: 4.249 in
• Width: 0.5 in
• Pressure [Max]: 7 psi
• Surface Speed [Max]: 3000 ft/min
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -40 °F
• Misalignment Tolerance: 0.015 in
• Case Construction: Heavy-Duty Carbon Steel
• Lip Base Material: Nitrile
• Lip Material: Mill-Right® N
• Spring Material: Stainless Steel
• EAN or UPC: 717744001070
• Weight: 0.307 lb
