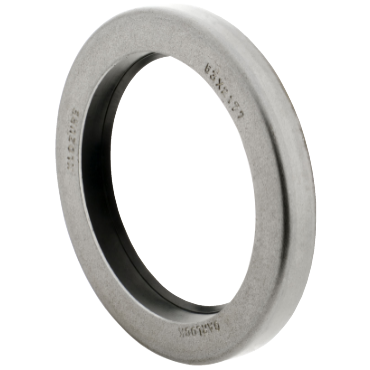

Garlock 21086-2177 Model 53 Single Lip Seal with Springs

Product Description

The Garlock 21086-2177 Model 53 Single Lip Seal with Springs is designed to provide effective sealing in various rotating applications. It is compatible with a shaft diameter of three inches and a housing bore diameter of four and one-eighth inches. This seal is ideal for general-purpose applications in industries including mining and hydroelectric power.

• Constructed with a heavy-duty carbon steel case
• Operates effectively under a maximum pressure of seven psi
• Temperature range from negative forty to two hundred degrees Fahrenheit

Product Highlights

This sealing solution features a single lip design with a finger spring, offering enhanced sealing performance and versatility in use. The easy installation and robustness make it suitable for various industrial settings.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 21086-2177

Technical Specifications

• Housing Bore Diameter: 4 1/8 in
• Shaft Diameter: 3 in
• Width: 1/2 in
• Maximum Surface Speed: 3,000 ft/min
• Seal Design: Assembled Seal
• Spring Material: Stainless Steel
• Lip Material: Mill-Right N
• Misalignment Tolerance: 0.015 in
