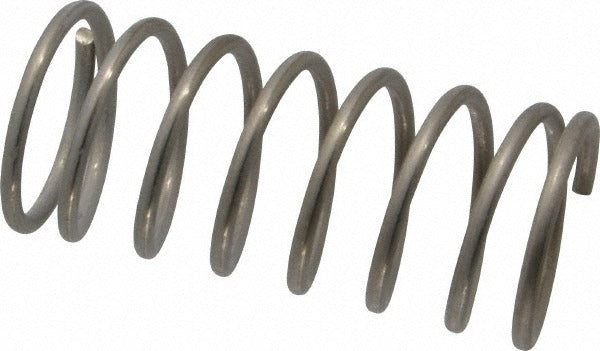

Gardner Spring SS-3M Utility Compression Spring Stainless

Product Description

The GARDNER SPRING SS-3M is a utility compression spring manufactured from stainless steel and intended for general mechanical and industrial applications. It features a 0.938-inch outside diameter and a 2-inch free length, with a wire diameter of 0.08 inches and a solid height of 0.72 inches. The spring delivers a rate of 13.48 pounds per inch and handles a maximum work load of 8.63 pounds. Closed ends provide stable seating on flat surfaces without additional fixturing. Maintenance technicians, mechanical assemblers, and trade professionals working on equipment that requires reliable return force or load bearing will find this spring appropriate for service and repair tasks.

This spring suits a wide range of light-duty mechanical applications including HVAC equipment access panels, plumbing valve assemblies, equipment latches, and general component return mechanisms. Its stainless steel construction makes it suitable for environments with moisture exposure or mild corrosive conditions. The plain silver finish requires no additional treatment prior to installation. Packaged in quantities of six, it is practical for service fleets and shops that need consistent on-hand inventory of common spring sizes.

Key Features

• Stainless steel construction resists corrosion in damp or mildly corrosive service environments
• Closed end type provides flat, stable seating contact without grinding or additional hardware
• 0.938-inch outside diameter and 2-inch free length fit standard spring pockets in HVAC and mechanical assemblies
• 13.48 lb/in spring rate and 8.63 lb maximum load suit light-duty compression applications
• Plain finish is installation-ready with no pre-treatment required
• Packaged in quantities of six for convenient shop stocking

Compatibility

Designed as a utility-type compression spring for general mechanical replacement and repair applications where a 0.938-inch OD, 2-inch free length closed-end spring is specified.

Installation Notes

Installation is performed by mechanical technicians familiar with spring-loaded assemblies in HVAC, plumbing, or general equipment contexts. Always de-energize or depressurize the relevant system before removing or installing compression springs in loaded assemblies. Use appropriate hand tools or spring compressors to safely seat the spring without overstressing the coils. Do not compress the spring beyond its solid height of 0.72 inches during installation or operation.
